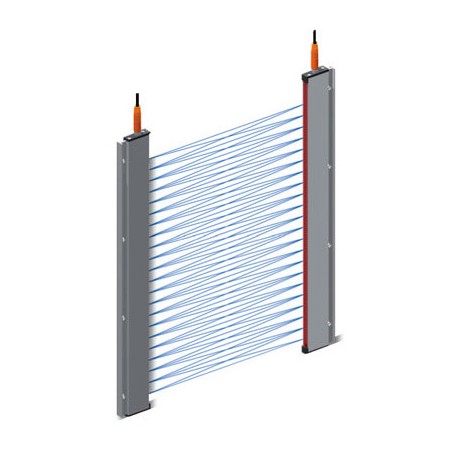

F3E-08-T6 AA030134M F3E08T6 OMRON 8-channel, 22-beam, h:480mm, Area sleuth. 280mm M8 Connector
F3E-08-T6
AA030134M
F3E08T6
OMRON
1 Pcs.
Automation > Multiple beam light curtain
Photoelectric sensors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Omron F3E-08-T6 area sleuth serves as a multi-axis optical sensor array used in material handling and automated access control to detect objects passing through monitored planes. These infrared light grids ensure reliable detection for machinery safety and positioning applications.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Through-beam: 200 mm
- 1320 mm: 120 mm
- 1800 mm: 120 mm
- 40 mm: 46
- Number of LEDs: 6
- Number of optical axes: 16
- Pitch: 40 mm
- Vertical detection range: 20 to 200 mm
- Response time: max. 110 ms (signal interruption)
- Light source (wave length): Infrared LED (880 nm)
- Power supply voltage: 10 to 30 VDC
- Ambient temperature: Operation; Storage: -40 to 70°C
- EMC conformity/standards: 73/23/EWG; 89/336/EWG; 95/16/EG; EN81-1; EN81-2; EN12015; EN12016; EN61000-6-x
- Degree of protection: IEC 60529 IP54
- Dimensions: 400 × 40.7 × 9 mm
More info
▲- Thin 9 mm shape for easy design-in in elevator constructions
- High ambient light immunity
- Robust aluminium housing
- Fulfills requirements of EN81-70 (1800 mm models) for mounting in elevators
Specifications & ordering info
Ordering information
Order code1 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
Specifications
73/23/EWG; 89/336/EWG; 95/16/EG; EN81-1; EN81-2; EN12015; EN12016; EN61000-6-x | |||||
