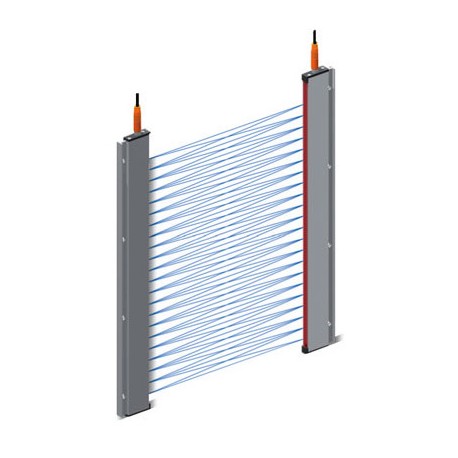

F3E-06-T1 5M AA026208F F3E06T15M OMRON 6-channel, 16-beam, h:400mm, Area sleuth. 200mm Cable 5M
F3E-06-T1 5M
AA026208F
F3E06T15M
OMRON
1 Pcs.
Automation > Multiple beam light curtain
Other Sensors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Omron F3E-06-T1 5M area sensor is utilized in automated machinery and production cells to detect object profiles and monitor designated spaces for uninhibited material flow. Such light grids offer reliable presence detection in compact industrial enclosures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Through-beam: 200 mm
- 1320 mm: 120 mm
- 1800 mm: 120 mm
- 40 mm: 46
- Number of LEDs: 6
- Number of optical axes: 16
- Pitch: 40 mm
- Vertical detection range: 20 to 200 mm
- Response time: max. 110 ms (signal interruption)
- Light source (wave length): Infrared LED (880 nm)
- Power supply voltage: 10 to 30 VDC
- Ambient temperature: Operation
- Storage: -40 to 70°C
- EMC conformity/standards: 73/23/EWG; 89/336/EWG; 95/16/EG; EN81-1; EN81-2; EN12015; EN12016; EN61000-6-x
- Degree of protection: IEC 60529 IP54
- Dimensions: 400 × 40.7 × 9 mm
More info
▲- Thin 9 mm shape for easy design-in in elevator constructions
- High ambient light immunity
- Robust aluminium housing
- Fulfills requirements of EN81-70 (1800 mm models) for mounting in elevators
Specifications & ordering info
Ordering information
Order code1 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
Specifications
73/23/EWG; 89/336/EWG; 95/16/EG; EN81-1; EN81-2; EN12015; EN12016; EN61000-6-x | |||||
