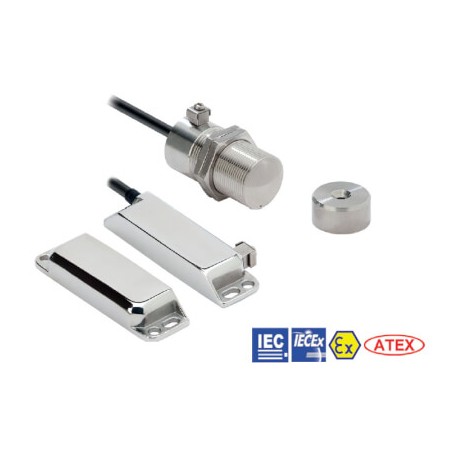

OMRON F39-TGR-NLMX-A F39-TGR-NLMX-A AA040406R F39TGRNLMXA OMRON Actuator for F3S-TGR-NLMX View larger
Images are for illustrative purposes only. Please refer to data sheet for details

F39-TGR-NLMX-A AA040406R F39TGRNLMXA OMRON Actuator for F3S-TGR-NLMX

F39-TGR-NLMX-A

AA040406R

F39TGRNLMXA

OMRON

1 Pcs.

Actuator for F3S-TGR-NLMX Accessory F3S-TGR-NLMX , actuator

Automation > Actuator for position switch with separate actuator
Contactless Switches TGR

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Features

Explosion proof non-contact switches

Explosion proof reed non-contact switches monitor the status of guarding doors in petrochemical and food applications with explosive atmospheres.

  • Based on reed technology
  • Connect up to 6 switches in series
  • Operates with all Omron safety controllers
  • Operates behind stainless steel fittings
  • Non-contact – no abrasion – no particles
  • Compensation of mechanical tolerances
  • Suitable for high pressure cleaning, CIP/SIP processes
  • Conforms to safety categories up PLe acc. EN ISO13849-1
  • For use in hazardous areas IECEx and ATEX EExd IIC T6 (Gas and Dust). Designed for Petro-chemical and food applications where explosive atmospheres are present.

Ordering information

Elongated sensors

Type

Cable connection

Contact configuration

Order code

5 m pre-wired

2NC/1NO

F3S-TGR-NLMX-21-05

10 m pre-wired

2NC/1NO

F3S-TGR-NLMX-21-10

Barrel sensors

Type

Cable connection

Contact configuration

Order code

5 m pre-wired

2NC/1NO

F3S-TGR-NBMX-21-05

10 m pre-wired

2NC/1NO

F3S-TGR-NBMX-21-10

Specifications

Mechanical data

Elongated sensors

Barrel sensors

Serial switching

up to 6 pcs.

Indicator

-

None

Operating distance

OFF  ON (Sao)

10 mm close

ON  OFF (Sar)

22 mm open

Actuator approach speed

Min.

Max.

4 mm/s

1000 mm/s

Operating temperature

-

-20°C to +60°C

Enclosure protection

Flying lead

IP 67 Certification for IP67 but can be used for SIP/CIP and high pressure cleaning like IP69K)

Material

-

Stainless steel 316

Electrical data

Elongated sensors

Barrel sensors

Sensor technology

-

Reed

Power supply

-

24 VDC±15%

Switching current

Min.

1 mA, 10 VDC

Rated loads

NC contacts

NO contact

Max.

0.6 A, 230 VAC/24 VDC (internally fused)

0.2 A, 230 VAC/24 VDC

Ex specification

II 2G Ex mb IIC T6Gb, II 2D Ex mb IIC T80 Db IP67*
(*Product is fully encapsulated which is considered to provide Ingress Protection to at least IP67)

Zones 1 and 2 (Gas), Zones 21 and 22 (Dust)

(An area where Gas and Dust is likely to occur in use)

IEC/EN 60079-0, IEC/EN 60079-18

Approved standards

EN standards certified by TÜV Rheinland

EN ISO 13849-1

EN 60204-1

EN 62061

EN ISO 14119

EN/IEC 60947-5-3

UL 508, CSA C22.2

BS 5304

EN 1088-1

Accessories

Order code

Actuators

for F3S-TGR-NLMX

F39-TGR-NLMX-A

for F3S-TGR-NBMX

F39-TGR-NBMX-A

Mounting screws

Set of Torx safety screws
(M4, 4 × 30 mm, 4 × 20 mm, 4 × 10 mm; incl. washers and Torx bit)

F39-TGR-N-Screws

Spacer (8 mm, Set of 2pcs.)1

for F3S-TGR-NLMX

F39-TGR-NLR-SPACER

Wiring examples (Single head connection)

G9SA

Single sensor application with G9SA-301
(up to PLe acc. EN ISO 13849-1)

1.Spacers are needed to prevent influences if switch is mounted on ferromagnetic background (e. g. reduced switching distance, EMC influences)


ETIM for 387945 Sensors (EC001487)
Feature Name Feature Value
Model (EF000010) Other

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
