F03-20 F03 1071M F032010PCS OMRON Accessory level
F03-20
F03 1071M
F032010PCS
OMRON
1 Pcs.
Automation > Accessories/spare parts for switching relay
Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Omron part number F03-20 functions as an accessory level component within specialized leakage detection and liquid monitoring systems. Such parts support dependable fluid sensing installations across commercial and industrial facilities where moisture protection is critical.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Liquid leakage sensor amplifier: Standard (250 kΩ up to 50 MΩ)
- Standard (1 MΩ, long distance wiring): K7L-UB
- With disconnection function set (250 kΩ up to 50MΩ): K7L-AT50DB
- With disconnection function set (1 MΩ, long distance wiring): K7L-UDB
- Sensors: Sensing band
- Point sensor: Easier to wipe off than the band type
- Electrodes have PTFE coating to resist chemicals: F03-16PS-F
- DIN-rail mounted socket: With finger protection
- Without finger protection: P2RF-08
- Plug-in socket: Screwless socket with Push-in plus technology
- Mounting brackets and stickers: Sensing band stickers
- Used for F03-16PE (adhesive tape): F03-26PES
- Used for F03-16PE (screws) (30 pcs): F03-26PEN
- Used for F03-16PT (screws): F03-26PTN
- Point sensor mounting brackets: Used for F03-16PS
- Rated power supply voltage: 12 to 24 VDC (allowable voltage fluctuation range: 10 to 30 VDC)
More info

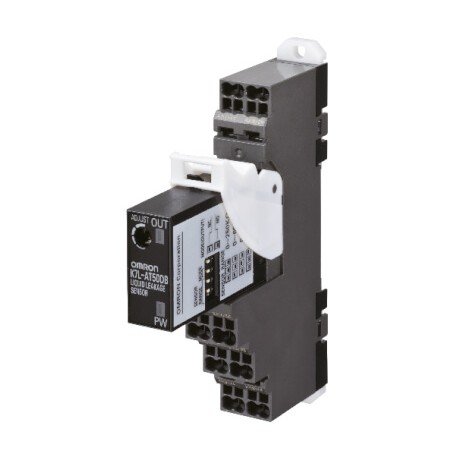

▲Ultra-miniature liquid leakage sensor amplifier
The Plug-in socket with Push-in plus technology, P2RF-08-PU is available for easy wiring. K7L detects a wide variety of liquids, ranging from water to liquid chemicals with low conductivity.
- Operation range: Up to 50 MΩ
- Four sensing ranges available
- Detection method: Conductive
- Two LEDs: Green for power supplied, red for output indication
- Conforms to EMC and LVD Directives, UL/CSA approved
Ordering information
Product name1 | |||
|---|---|---|---|
With disconnection function set (1 MΩ, long distance wiring) | |||
For temperature and chemical resistance (material: Polyethylene PTFE) | |||
For flexibility and superior workability (material: Plastic fiber braided cable) | |||
For flexibility and visual confirmation of leakage (material: Plastic fiber braided cable) | |||
Accessories
Product name2 | |||
|---|---|---|---|
