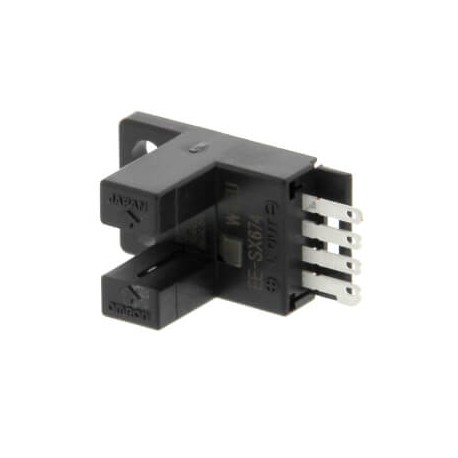

OMRON EE-SX675 EE-SX675 EESX2267A EESX675,1 OMRON Horseshoe 5mm Light/Osc. Select. NPN View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EE-SX675 EESX2267A EESX675,1 OMRON Horseshoe 5mm Light/Osc. Select. NPN

EE-SX675

EESX2267A

EESX675.1

OMRON

50 Pcs.

Horseshoe 5mm Light/Osc. Select. NPN Photo micro sensor, slot type, T-shaped, L-ON/D-ON selectable, NPN, connector

Automation > Fork light barrier
Photomicro

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron EE-SX675 horseshoe sensor functions as an optoelectronic switch designed to register interruptions in its optical slot during automated operation. Such sensors are routinely employed in industrial machinery to regulate positioning, track items on production lines, and verify mechanical limits. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP): IP50
  • Material of optical surface: Plastic
  • Housing material: Plastic
  • Operation agent-safety class: Safety class 3
  • Voltage type: DC
  • Construction type housing: Special construction
  • Sensing mode: Light-/dark switching
  • Type of switch function: Programmable/configurable
  • Type of light: Infrared light
  • Material of cable sheath: Polyvinyl chloride (PVC)
  • Type of switching output: NPN
  • With communication interface RS-485: No
  • With communication interface SSD: No
  • With communication interface SSI: No
  • Analogue output 0 mA ... 20 mA: No
  • With communication interface RS-232: No

More info

▲
ShapeT-shaped, 10 mmSensing methodThrough-beam with slotSensing distance5 mmSetting methodFixedConnection methodSystem connectorOutput typeNPNOperation modeDark-ON, Light-ONResponse time0.17 msMaterial housingPBTThread sizeOtherProduct Width (unpacked)26 mmProduct Height (unpacked)26 mmProduct Depth (unpacked)16.7 mmType of lightInfrared lightSupply voltage DC5-24 V

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
