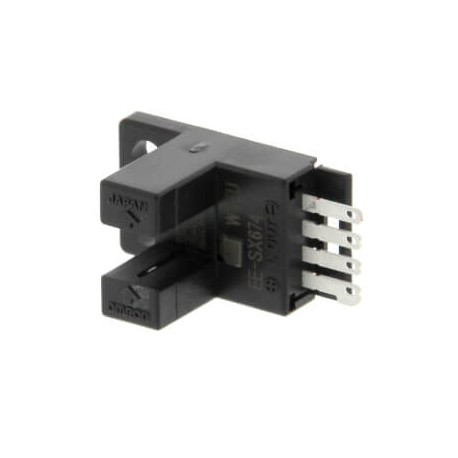

OMRON EE-SX674R EE-SX674R EESX2266C EESX674R,1 OMRON Horseshoe 5mm Light/Osc select. PNP LED View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EE-SX674R EESX2266C EESX674R,1 OMRON Horseshoe 5mm Light/Osc select. PNP LED

EE-SX674R

EESX2266C

EESX674R.1

OMRON

10 Pcs.

Horseshoe 5mm Light/Osc select. PNP LED Photo micro sensor, slot type, close-mounting, L-ON/D-ON selectable, PNP, connector

Automation > Fork light barrier
Photomicro

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron EE-SX674R horseshoe 5mm light/osc select PNP LED sensors monitor presence and travel limits in automated assembly systems, ensuring precise alignment and stopping points. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP50
  • Material of optical surface (EF004134): Plastic
  • Housing material (EF001596): Plastic
  • Operation agent-safety class (EF003982): Safety class 3
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Special construction
  • Sensing mode (EF007503): Light-/dark switching
  • Type of switch function (EF003963): Programmable/configurable
  • Type of light (EF004029): Infrared light
  • Material of cable sheath (EF004136): Polyvinyl chloride (PVC)
  • Type of switching output (EF003962): PNP
  • With communication interface RS-485 (EF007314): No
  • With communication interface SSD (EF007315): No
  • With communication interface SSI (EF007316): No
  • Analogue output 0 mA ... 20 mA (EF006808): No
  • With communication interface RS-232 (EF007312): No

More info

▲
ShapeClose-mountingSensing methodThrough-beam with slotSensing distance5 mmSetting methodFixedConnection methodSystem connectorOutput typePNPOperation modeDark-ON, Light-ONResponse time0.17 msMaterial housingPBTThread sizeOtherProduct Width (unpacked)13.6 mmProduct Height (unpacked)15.5 mmProduct Depth (unpacked)25.3 mmType of lightInfrared lightSupply voltage DC5-24 V
