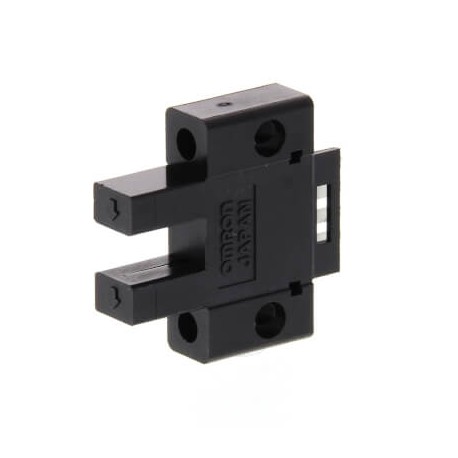

OMRON EE-SX670R EE-SX670R EESX2250G EESX670R,1 OMRON Horseshoe 5mm PNP LED indicator View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EE-SX670R EESX2250G EESX670R,1 OMRON Horseshoe 5mm PNP LED indicator

EE-SX670R

EESX2250G

EESX670R.1

OMRON

100 Pcs.

Horseshoe 5mm PNP LED indicator Photo micro sensor, slot type, standard shape, L-ON/D-ON selectable, PNP, connector

Automation > Fork light barrier
Photomicro

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Equipped with an integrated LED indicator, the Omron EE-SX670R optical slot sensor allows operators to easily monitor operational status during machine setup and troubleshooting. The device operates as a reliable photoelectric limit switch, detecting objects that pass through its infrared beam path within industrial installations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP50
  • Material of optical surface (EF004134): Plastic
  • Housing material (EF001596): Plastic
  • Operation agent-safety class (EF003982): Safety class 3
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Special construction
  • Sensing mode (EF007503): Light-/dark switching
  • Type of switch function (EF003963): Programmable/configurable
  • Type of light (EF004029): Infrared light
  • Material of cable sheath (EF004136): Polyvinyl chloride (PVC)
  • Type of switching output (EF003962): PNP
  • With communication interface RS-485 (EF007314): No
  • With communication interface SSD (EF007315): No
  • With communication interface SSI (EF007316): No
  • Analogue output 0 mA ... 20 mA (EF006808): No
  • With communication interface RS-232 (EF007312): No

More info

▲
ShapeStraightSensing methodThrough-beam with slotSensing distance5 mmSetting methodFixedConnection methodSystem connectorOutput typePNPOperation modeDark-ON, Light-ONResponse time0.17 msMaterial housingPBTThread sizeOtherProduct Width (unpacked)25.4 mmProduct Height (unpacked)22.2 mmProduct Depth (unpacked)6.95 mmType of lightInfrared lightSupply voltage DC5-24 V
