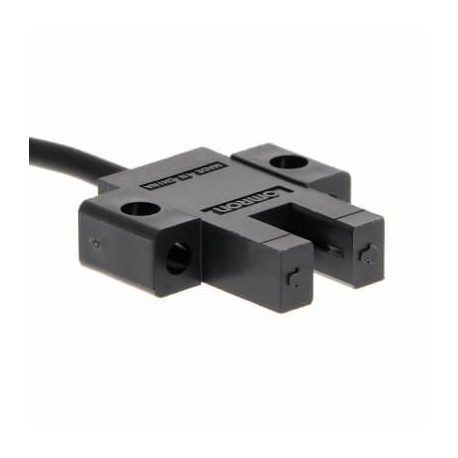

OMRON EE-SX670P-WR 1M EE-SX670P-WR 1M EESX1999R EESX670PWR1M OMRON Horseshoe 5mm Light/Osc select. PNP Cable 1m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EE-SX670P-WR 1M EESX1999R EESX670PWR1M OMRON Horseshoe 5mm Light/Osc select. PNP Cable 1m

EE-SX670P-WR 1M

EESX1999R

EESX670PWR1M

OMRON

1 Pcs.

Horseshoe 5mm Light/Osc select. PNP Cable 1m Photo micro sensor, slot type, standard shape, L-ON/D-ON selectable, PNP, 1 m robotic cable

Automation > Fork light barrier
Photomicro

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Configured for versatile automation tasks, this Omron EE-SX670P-WR 1M horseshoe 5mm light/osc select. PNP cable 1m unit functions as a slotted photoelectric switch for detecting material feed, part limits, and mechanical transitions. Equipment builders utilize these reliable components to monitor moving elements securely. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP50
  • Material of optical surface (EF004134): Plastic
  • Housing material (EF001596): Plastic
  • Operation agent-safety class (EF003982): Safety class 3
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Special construction
  • Sensing mode (EF007503): Light-/dark switching
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Cable
  • Type of light (EF004029): Infrared light
  • Material of cable sheath (EF004136): Polyvinyl chloride (PVC)
  • Type of switching output (EF003962): PNP
  • With communication interface RS-485 (EF007314): No
  • With communication interface SSD (EF007315): No
  • With communication interface SSI (EF007316): No
  • Analogue output 0 mA ... 20 mA (EF006808): No

More info

▲
ShapeStraightSensing methodThrough-beam with slotSensing distance5 mmSetting methodFixedConnection methodCableCable length1 mOutput typePNPOperation modeDark-ON, Light-ONResponse time0.17 msMaterial housingPBTThread sizeOtherProduct Width (unpacked)25.4 mmProduct Height (unpacked)28.2 mmProduct Depth (unpacked)6.95 mmType of lightInfrared lightSupply voltage DC5-24 V

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
