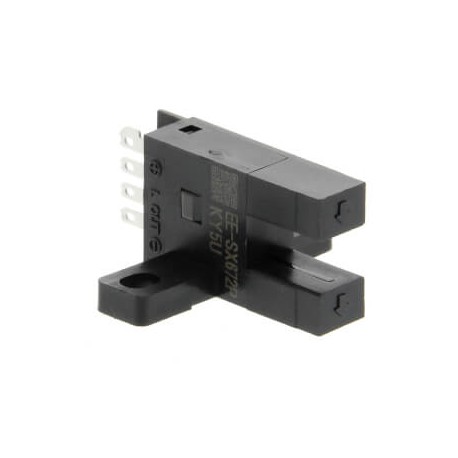

OMRON EE-SX472 EE-SX472 EESX2243D EESX472,1 OMRON Horseshoe 5mm Vert PC-Board View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EE-SX472 EESX2243D EESX472,1 OMRON Horseshoe 5mm Vert PC-Board

EE-SX472

EESX2243D

EESX472.1

OMRON

100 Pcs.

Horseshoe 5mm Vert PC-Board Photo micro sensor, slot type, T-shaped, L-ON, NPN, connector

Automation > Fork light barrier
Photomicro

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Omron EE-SX472 horseshoe PC-board sensor functions as a photoelectric switch designed to detect object presence in automated assembly and positioning setups. Devices of this category are commonly integrated into machinery to track movement, count items, or verify limits based on light interruption. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP): IP50
  • Material of optical surface: Plastic
  • Housing material: Plastic
  • Operation agent-safety class: Safety class 3
  • Voltage type: DC
  • Construction type housing: Special construction
  • Sensing mode: Light switching
  • Type of switch function: Programmable/configurable
  • Type of light: Infrared light
  • Material of cable sheath: Polyvinyl chloride (PVC)
  • Type of switching output: NPN
  • With communication interface RS-485: No
  • With communication interface SSD: No
  • With communication interface SSI: No
  • Analogue output 0 mA ... 20 mA: No
  • With communication interface RS-232: No

More info

▲
ShapeT-shaped, 7 mmSensing methodThrough-beam with slotSensing distance5 mmSetting methodFixedConnection methodSystem connectorOutput typeNPNOperation modeLight-ONResponse time0.17 msMaterial housingPBTThread sizeOtherProduct Width (unpacked)13.7 mmProduct Height (unpacked)26 mmProduct Depth (unpacked)26 mmType of lightInfrared lightSupply voltage DC5-24 V

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
