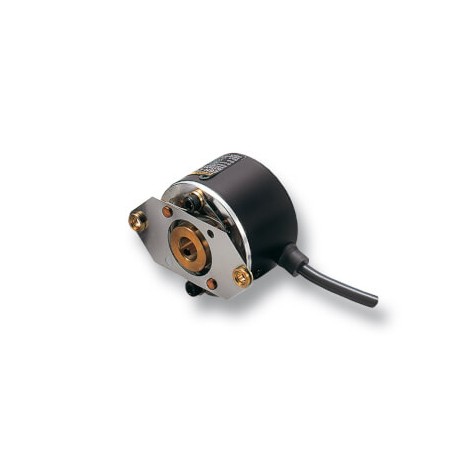

OMRON E6H-CWZ3X 2500P/R 0,5M E6H-CWZ3X 2500P/R 0,5M E6H 1101E E6HCWZ3X2500PR05M OMRON Incremental ABZ 2500ppr Driver 5-12vdc. Hollow shaft View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E6H-CWZ3X 2500P/R 0,5M E6H 1101E E6HCWZ3X2500PR05M OMRON Incremental ABZ 2500ppr Driver 5-12vdc. Hollow shaft

E6H-CWZ3X 2500P/R 0,5M

E6H 1101E

E6HCWZ3X2500PR05M

OMRON

1 Pcs.

Incremental ABZ 2500ppr Driver 5-12vdc. Hollow shaft

Automation > Rotary encoder
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Features

Hollow shaft rotary encoder

The E6H family of incremental encoders features a dia 40mm hollow shaft.

  • Wide operating voltage range from 5 to 24 VDC
  • Line drive output available (100 m max.)

Ordering information

Size dia. in mm

Power supply voltage

Output form

Resolution (pulse/rotation)

Order code

40

5 to 24 VDC

Open collector output

300, 360, 500, 600, 720, 800, 1,000, 1,024, 1,200, 1,500, 1,800, 2,000, 2,048, 2,500, 3,600

E6H-CWZ6C

5 to 12 VDC

Voltage output

300, 360, 500, 600, 720, 800, 1,000, 1,024, 1,200, 1,500, 1,800, 2,000, 2,048, 2,500, 3,600

E6H-CWZ3E

5 to 12 VDC

Line drive output

300, 360, 500, 600, 720, 800, 1,000, 1,024, 1,200, 1,500, 1,800, 2,000, 2,048, 2,500, 3,600

E6H-CWZ3X
