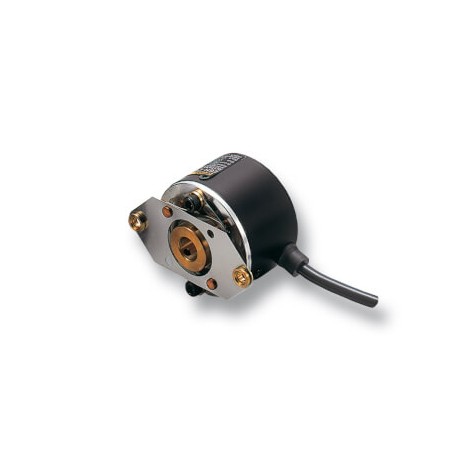

OMRON E6H-CWZ3X 2000P/R 0,5M E6H-CWZ3X 2000P/R 0,5M E6H 1099M E6HCWZ3X2000PR05M OMRON Incremental ABZ 2000ppr Driver 5-12vdc. Hollow shaft View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E6H-CWZ3X 2000P/R 0,5M E6H 1099M E6HCWZ3X2000PR05M OMRON Incremental ABZ 2000ppr Driver 5-12vdc. Hollow shaft

E6H-CWZ3X 2000P/R 0,5M

E6H 1099M

E6HCWZ3X2000PR05M

OMRON

1 Pcs.

Incremental ABZ 2000ppr Driver 5-12vdc. Hollow shaft

Automation > Rotary encoder
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron E6H-CWZ3X 2000P/R 0,5M is an incremental rotary encoder used in industrial automation machinery to monitor precise rotational speed, direction, and angular position on moving shafts. This hollow shaft device translates mechanical movement into electrical pulses that programmable logic controllers and motion controllers use for closed-loop feedback in positioning tasks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • 40: 5 to 24 VDC
  • 5 to 12 VDC: Voltage output
  • 5 to 12 VDC: Line drive output

More info

▲
Features

Hollow shaft rotary encoder

The E6H family of incremental encoders features a dia 40mm hollow shaft.

  • Wide operating voltage range from 5 to 24 VDC
  • Line drive output available (100 m max.)

Ordering information

Size dia. in mm

Power supply voltage

Output form

Resolution (pulse/rotation)

Order code

40

5 to 24 VDC

Open collector output

300, 360, 500, 600, 720, 800, 1,000, 1,024, 1,200, 1,500, 1,800, 2,000, 2,048, 2,500, 3,600

E6H-CWZ6C

5 to 12 VDC

Voltage output

300, 360, 500, 600, 720, 800, 1,000, 1,024, 1,200, 1,500, 1,800, 2,000, 2,048, 2,500, 3,600

E6H-CWZ3E

5 to 12 VDC

Line drive output

300, 360, 500, 600, 720, 800, 1,000, 1,024, 1,200, 1,500, 1,800, 2,000, 2,048, 2,500, 3,600

E6H-CWZ3X
