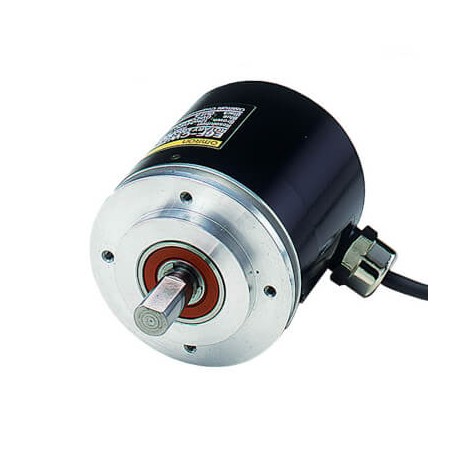

OMRON E6F-CWZ5G 200P/R 2M E6F-CWZ5G 200P/R 2M E6F 1030E E6FCWZ5G200PR2M OMRON Incremental ABZ 200ppr Complement 12-24vdc View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E6F-CWZ5G 200P/R 2M E6F 1030E E6FCWZ5G200PR2M OMRON Incremental ABZ 200ppr Complement 12-24vdc

E6F-CWZ5G 200P/R 2M

E6F 1030E

E6FCWZ5G200PR2M

OMRON

1 Pcs.

Incremental ABZ 200ppr Complement 12-24vdc Encoder, incremental, 200ppr, 12-24VDC, complimentary output, 2m cable

Automation > Rotary encoder
E6F

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron incremental encoder E6F-CWZ5G 200P/R 2M provides reliable feedback on rotational speed and angular displacement for industrial drive systems. Engineers integrate incremental encoders into machinery to enable closed-loop control of motors, rollers, and mechanical actuators. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model: Incremental encoder
  • Construction size: 60 mm
  • Pulses per rotation: 200
  • Signal outputs: A, B, Z
  • Shaft diameter: 10 mm
  • Power supply voltage: 12-24 V
  • Output type: PNP/NPN
  • Connection method: Cable
  • Cable length: 2 m
  • Model (EF000010): Incremental encoder
  • Construction size (EF012282): 60 mm

More info

▲

Specifications

ModelIncremental encoder
Construction size60 mm
Pulses per rotation200
Signal outputsA, B, Z
Shaft diameter10 mm
Power supply voltage12-24 V
Output typePNP/NPN
Connection methodCable
Cable length2 m

Accessories

E69-C10BAccessory encoder, shaft coupling for E6F encoder
E69-C10MAccessory encoder, shaft coupling dia. 10 mm, metal
E69-C610BShaft coupling for E6F-C encoder, Different end diameter
