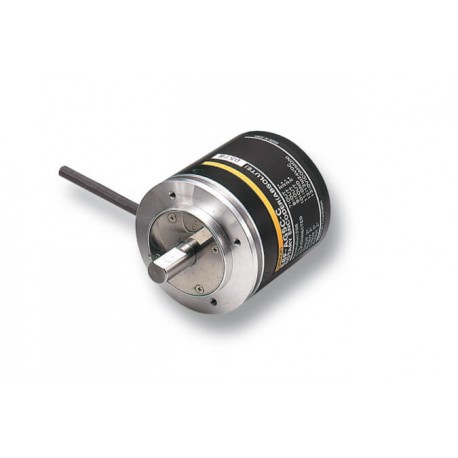

E6F-AG5B 720 2M E6F 1026G E6FAG5B7202M OMRON All 720ppr Gray PNP 12-24vdc, Cable 2m
E6F-AG5B 720 2M
E6F 1026G
E6FAG5B7202M
OMRON
1 Pcs.
Automation > Rotary encoder
E6F
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Omron E6F-AG5B 720 2M is an absolute encoder that delivers precise angular position data through digital output codes for heavy-duty industrial applications. Heavy machinery and positioning apparatuses rely on absolute encoders to retain accurate coordinate data even after power interruptions.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Physical measurement principle (EF008238): Optic
- Degree of protection (IP) (EF005474): IP65
- Model (EF000010): Absolute encoder
- Type of electric connection (EF003961): Cable
- Housing material (EF001596): Aluminium
- Type of shaft encoder (EF006968): Full shaft
- Programmable (EF000841): No
- Max. pulses per revolution (EF003589): 720
- Construction size (EF012282): 60 mm
- Diameter axle (EF007110): 9 mm
- Impulse rate per cycle (EF007289): 20000
- Number of steps per revolution (EF006938): 720
- Number of revolutions (EF006943): 5000
More info
▲- Stronger shaft and higher durability (120 N in radial direction and 50 N in thrust direction) than previous E6F Encoders
- Drip-proof construction meets IP64F standards
- High-resolution models (1024 pulses max. per revolution)
- Faster response for high-speed control applications (grey code: 20 kHz)
