> OMRON > Encoders > E6C3-C > E6C32061C

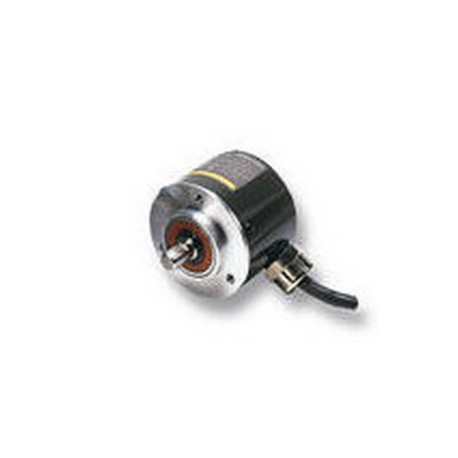

OMRON E6C3-CWZ5GH 800P/R 1M E6C3-CWZ5GH 800P/R 1M E6C32061C E6C3CWZ5GH800PR1M OMRON Incremental ABZ 800ppr Push-Pull 12-24vdc 1m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E6C3-CWZ5GH 800P/R 1M E6C32061C E6C3CWZ5GH800PR1M OMRON Incremental ABZ 800ppr Push-Pull 12-24vdc 1m

E6C3-CWZ5GH 800P/R 1M

E6C32061C

E6C3CWZ5GH800PR1M

OMRON

1 Pcs.

Incremental ABZ 800ppr Push-Pull 12-24vdc 1m Encoder incremental 8 dia rugged housing, complimentary output, 800 ppr

Automation > Rotary encoder
E6C3-C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Incremental encoder model E6C3-CWZ5GH 800P/R 1M produced by Omron serves as a precise rotational feedback sensor for industrial drive systems, conveyor lines, and automated manufacturing equipment. Optical encoders track shaft movement by generating accurate pulse signals to measure speed, distance, and angular position.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Physical measurement principle (EF008238): Optic
  • Degree of protection (IP) (EF005474): IP65
  • Model (EF000010): Incremental encoder
  • Signal outputs of rotary encoder (EF003590): A+B+0
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Aluminium
  • Type of shaft encoder (EF006968): Full shaft
  • Programmable (EF000841): No
  • Construction size (EF012282): 50 mm
  • Diameter axle (EF007110): 7 mm
  • Impulse rate per cycle (EF007289): 125000
  • Number of revolutions (EF006943): 5000

More info

▲
  • IP64f or IP65f drip-proof, oil-proof construction

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
