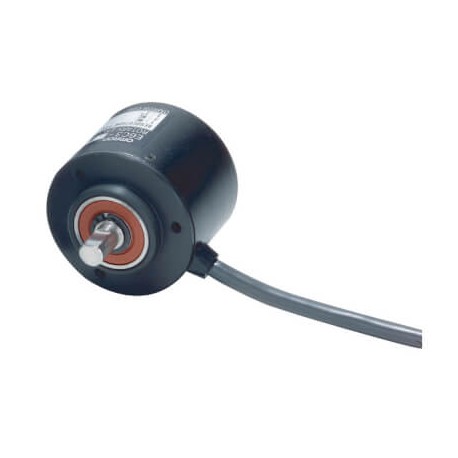

E6C3-CWZ5GH 360P/R 2M E6C32004D E6C3CWZ5GH360PR2M OMRON Incremental ABZ 100ppr Push-Pull 12-24vdc, Cable 2m
E6C3-CWZ5GH 360P/R 2M
E6C32004D
E6C3CWZ5GH360PR2M
OMRON
1 Pcs.
Automation > Rotary encoder
E6C3-C
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Omron E6C3-CWZ5GH 360P/R 2M E6C32004D E6C3CWZ5GH360PR2M OMRON Incremental ABZ 100ppr Push-Pull 12-24vdc, Cable 2m functions as an incremental encoder to monitor rotational speed and angular displacement in automated manufacturing equipment. Encoders convert mechanical shaft motion into precise electrical signals to support feedback loops in motion control systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model: Incremental encoder
- Construction size: 50 mm
- Pulses per rotation: 360
- Signal outputs: A, B, Z
- Shaft diameter: 8 mm
- Power supply voltage: 12-24 V
- Output type: PNP/NPN
- Connection method: Cable
- Cable length: 2 m
- Physical measurement principle (EF008238): Optic
- Degree of protection (IP) (EF005474): IP65
- Model (EF000010): Incremental encoder
- Signal outputs of rotary encoder (EF003590): A+B+0
- Type of electric connection (EF003961): Cable
- Housing material (EF001596): Aluminium
- Type of shaft encoder (EF006968): Full shaft
More info
▲Specifications
| Model | Incremental encoder |
| Construction size | 50 mm |
| Pulses per rotation | 360 |
| Signal outputs | A, B, Z |
| Shaft diameter | 8 mm |
| Power supply voltage | 12-24 V |
| Output type | PNP/NPN |
| Connection method | Cable |
| Cable length | 2 m |
Accessories
| E69-C08B | Accessory encoder, shaft coupling for E6C3-A encoder | ||
| E69-C68B | Accessory encoder, shaft coupling dia. 6mm and 8mm |
