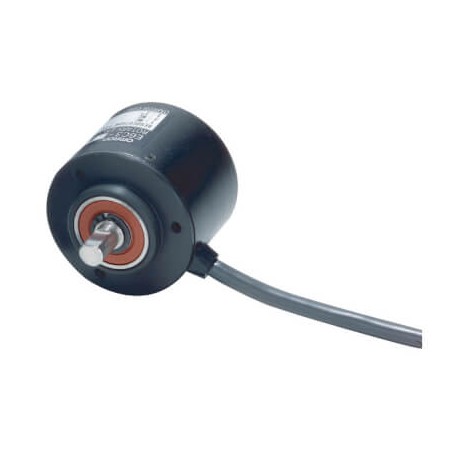

OMRON E6C3-CWZ5GH 2000P/R 2M E6C3-CWZ5GH 2000P/R 2M E6C32014A E6C3CWZ5GH2000PR2M OMRON Incremental ABZ 2000ppr Push-Pull 12-24vdc 2m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E6C3-CWZ5GH 2000P/R 2M E6C32014A E6C3CWZ5GH2000PR2M OMRON Incremental ABZ 2000ppr Push-Pull 12-24vdc 2m

E6C3-CWZ5GH 2000P/R 2M

E6C32014A

E6C3CWZ5GH2000PR2M

OMRON

1 Pcs.

Incremental ABZ 2000ppr Push-Pull 12-24vdc 2m Encoder incremental, 8 mm dia. shaft, rugged housing, 2000 ppr, 12-24 VDC, complementary output, 2 m cable

Automation > Rotary encoder
E6C3-C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron E6C3-CWZ5GH 2000P/R 2M is an incremental encoder built for high-resolution feedback in demanding industrial motion control applications. These optical sensors are widely installed on motors and drives to supply accurate tracking pulses to automation controllers. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model: Incremental encoder
  • Construction size: 50 mm
  • Pulses per rotation: 2000
  • Signal outputs: A, B, Z
  • Shaft diameter: 8 mm
  • Power supply voltage: 12-24 V
  • Output type: PNP/NPN
  • Connection method: Cable
  • Cable length: 2 m
  • Physical measurement principle (EF008238): Optic
  • Degree of protection (IP) (EF005474): IP65
  • Model (EF000010): Incremental encoder
  • Signal outputs of rotary encoder (EF003590): A+B+0
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Aluminium
  • Type of shaft encoder (EF006968): Full shaft

More info

▲

Specifications

ModelIncremental encoder
Construction size50 mm
Pulses per rotation2000
Signal outputsA, B, Z
Shaft diameter8 mm
Power supply voltage12-24 V
Output typePNP/NPN
Connection methodCable
Cable length2 m

Accessories

E69-C08BAccessory encoder, shaft coupling for E6C3-A encoder
E69-C68BAccessory encoder, shaft coupling dia. 6mm and 8mm
