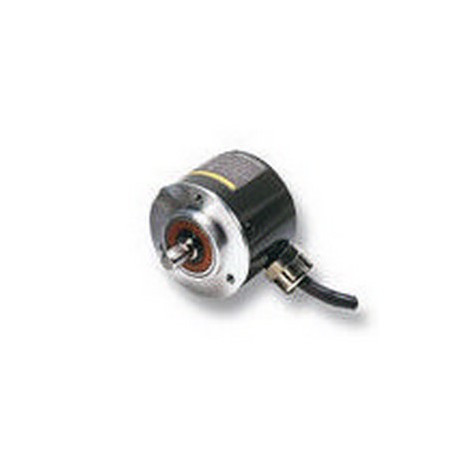

OMRON E6C3-CWZ5GH 100P/R 1M E6C3-CWZ5GH 100P/R 1M E6C32054M E6C3CWZ5GH100PR1M OMRON Incremental ABZ 100ppr Push-Pull 12-24vdc Cable 1m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E6C3-CWZ5GH 100P/R 1M E6C32054M E6C3CWZ5GH100PR1M OMRON Incremental ABZ 100ppr Push-Pull 12-24vdc Cable 1m

E6C3-CWZ5GH 100P/R 1M

E6C32054M

E6C3CWZ5GH100PR1M

OMRON

1 Pcs.

Incremental ABZ 100ppr Push-Pull 12-24vdc Cable 1m Encoder incremental 8 dia rugged housing, complimentary output, 100 ppr

Automation > Rotary encoder
E6C3-C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron E6C3-CWZ5GH 100P/R 1M incremental encoder functions as a rotational sensing device to track speed, distance, and direction in automated production lines. Such optical encoders deliver reliable pulse trains to motion controllers, ensuring synchronized operation across mechanical axes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Physical measurement principle (EF008238): Optic
  • Degree of protection (IP) (EF005474): IP65
  • Model (EF000010): Incremental encoder
  • Signal outputs of rotary encoder (EF003590): A+B+0
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Aluminium
  • Type of shaft encoder (EF006968): Full shaft
  • Programmable (EF000841): No
  • Max. pulses per revolution (EF003589): 100
  • Construction size (EF012282): 50 mm
  • Diameter axle (EF007110): 7 mm
  • Impulse rate per cycle (EF007289): 125000
  • Number of revolutions (EF006943): 5000

More info

▲
  • IP64f or IP65f drip-proof, oil-proof construction
