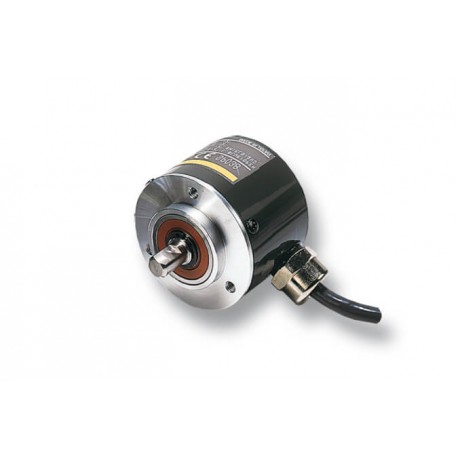

OMRON E6C3-AG5C 256P/R 2M E6C3-AG5C 256P/R 2M E6C31001D E6C3AG5C256PR2M OMRON All 360cpr Gray NPN 12-24 Vdc Connector 2m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E6C3-AG5C 256P/R 2M E6C31001D E6C3AG5C256PR2M OMRON All 360cpr Gray NPN 12-24 Vdc Connector 2m

E6C3-AG5C 256P/R 2M

E6C31001D

E6C3AG5C256PR2M

OMRON

1 Pcs.

All 360cpr Gray NPN 12-24 Vdc Connector 2m Encoder, absolute, 256ppr, 9-bit, 12-24 VDC, NPN open collector, gray code output, 2m cable

Automation > Rotary encoder
E6C3-A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron E6C3-AG5C 256P/R 2M absolute encoder is utilized to determine exact angular positions without losing data during power interruptions. These sensors provide unique digital code outputs corresponding to specific shaft locations in heavy machinery.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Physical measurement principle (EF008238): Optic
  • Degree of protection (IP) (EF005474): IP65
  • Model (EF000010): Absolute encoder
  • Signal outputs of rotary encoder (EF003590): A+B
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Aluminium
  • Type of shaft encoder (EF006968): Full shaft
  • Programmable (EF000841): No
  • Max. pulses per revolution (EF003589): 256
  • Construction size (EF012282): 50 mm
  • Diameter axle (EF007110): 7.982 mm
  • Number of revolutions (EF006943): 5000

More info

▲
  • IP65f drip-proof, oil-proof construction
  • 8mm shaft Diameter
