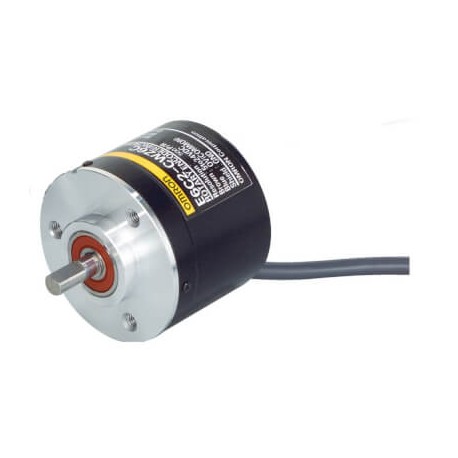

E6C2-CWZ6C 10P/R 2M E6C27000D E6C2CWZ6C10PR2MOMS OMRON Incremental ABZ 10ppr NPN 5-24vdc, Cable 2m
E6C2-CWZ6C 10P/R 2M
E6C27000D
E6C2CWZ6C10PR2MOMS
OMRON
1 Pcs.
Automation > Rotary encoder
E6C2-C
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Incremental encoder unit E6C2-CWZ6C 10P/R 2M by Omron operates as a rotational feedback device designed to measure shaft speed, direction, and position within industrial control installations. Such sensors support closed-loop motor control and positioning tasks across diverse manufacturing equipment. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model: Incremental encoder
- Construction size: 50 mm
- Pulses per rotation: 10
- Signal outputs: A, B, Z
- Shaft diameter: 6 mm
- Power supply voltage: 5-24 V
- Output type: NPN
- Connection method: Cable
- Cable length: 2 m
- Physical measurement principle (EF008238): Optic
- Degree of protection (IP) (EF005474): IP64
- Model (EF000010): Incremental encoder
- Signal outputs of rotary encoder (EF003590): A+B+0
- Type of transmission medium (EF007513): Copper
- Type of electric connection (EF003961): Cable
- Housing material (EF001596): Aluminium
More info
▲Specifications
| Model | Incremental encoder |
| Construction size | 50 mm |
| Pulses per rotation | 10 |
| Signal outputs | A, B, Z |
| Shaft diameter | 6 mm |
| Power supply voltage | 5-24 V |
| Output type | NPN |
| Connection method | Cable |
| Cable length | 2 m |
Accessories
| E69-C06B | Accessory encoder, shaft coupling for E6B2/E6C2-C/E6CP/E6D encoder | ||
| E69-C06M | Accessory encoder, shaft coupling dia. 6mm, metal | ||
| E69-C68B | Accessory encoder, shaft coupling dia. 6mm and 8mm |
