View larger
Images are for illustrative purposes only. Please refer to data sheet for details

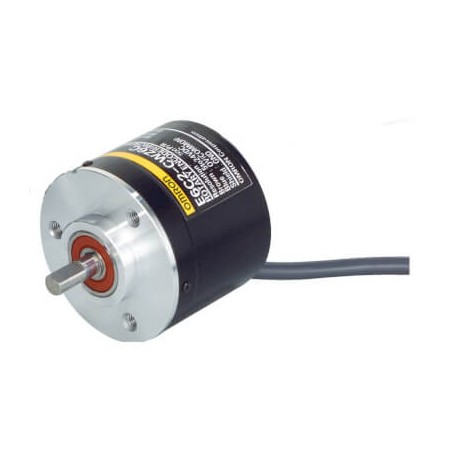

E6C2-CWZ1X 1024P/R 2M E6C27063B E6C2CWZ1X1024PR2MOMS OMRON Incremental ABZ 1024ppr Driver 5vdc Cable 2m
E6C2-CWZ1X 1024P/R 2M
E6C27063B
E6C2CWZ1X1024PR2MOMS
OMRON
1 Pcs.
Incremental ABZ 1024ppr Driver 5vdc Cable 2m
Encoder, incremental, 1024 ppr, 5 VDC, Line driver output, 2 m cable
Automation > Rotary encoder
E6C2-C
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Specifications
| Model | Incremental encoder |
| Construction size | 50 mm |
| Pulses per rotation | 1024 |
| Signal outputs | A, B, Z |
| Shaft diameter | 6 mm |
| Power supply voltage | 4.8-5.2 V |
| Output type | Line driver (RS-422) |
| Connection method | Cable |
| Cable length | 2 m |
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Degree of protection (NEMA) (EF011959) | Other |
| Physical measurement principle (EF008238) | Optic |
| Degree of protection (IP) (EF005474) | IP64 |
| Standard for interfaces (EF004017) | Other |
| Model (EF000010) | Incremental encoder |
| Signal outputs of rotary encoder (EF003590) | A+B+0 |
| Type of transmission medium (EF007513) | Copper |
| Type of electric connection (EF003961) | Cable |
| Housing material (EF001596) | Aluminium |
| Explosion safety category for gas (EF003997) | None |
| Type of shaft encoder (EF006968) | Full shaft |
| Programmable (EF000841) | No |
| Max. pulses per revolution (EF003589) | 1024 |
| Construction size (EF012282) | 50 mm |
| Diameter axle (EF007110) | 5.979 mm |
| Impulse rate per cycle (EF007289) | 1024 |
| Number of steps per revolution (EF006938) | 1024 |
| Number of revolutions (EF006943) | 6000 |
