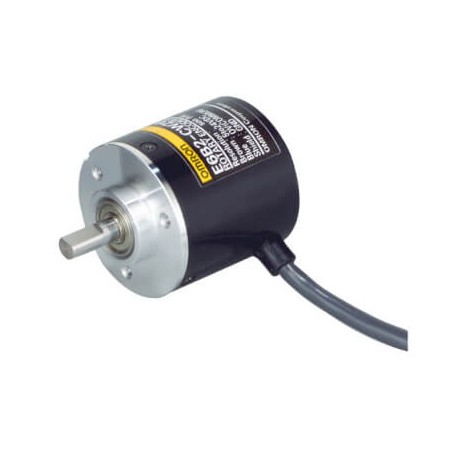

OMRON E6B2-CWZ6C 20P/R 2M E6B2-CWZ6C 20P/R 2M E6B27080R E6B2CWZ6C20PR2MOMS OMRON Incremental ABZ 20ppr NPN 5-24vdc, Cable 2m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E6B2-CWZ6C 20P/R 2M E6B27080R E6B2CWZ6C20PR2MOMS OMRON Incremental ABZ 20ppr NPN 5-24vdc, Cable 2m

E6B2-CWZ6C 20P/R 2M

E6B27080R

E6B2CWZ6C20PR2MOMS

OMRON

1 Pcs.

Incremental ABZ 20ppr NPN 5-24vdc, Cable 2m Rotary Encoder, incremental, 20 ppr, 5 to 24 VDC, 3-phase, NPN output, 2 m cable

Automation > Rotary encoder
E6B2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron incremental encoder E6B2-CWZ6C 20P/R 2M measures rotational speed, direction, and angle within motion control and feedback loops. Rotary encoders of this type are widely deployed on motors and conveyors to provide real-time pulse trains for accurate speed regulation and position tracking. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model: Incremental encoder
  • Construction size: 40 mm
  • Pulses per rotation: 20
  • Signal outputs: A, B, Z
  • Shaft diameter: 6 mm
  • Power supply voltage: 5-24 V
  • Output type: NPN
  • Connection method: Cable
  • Cable length: 2 m
  • Physical measurement principle (EF008238): Optic
  • Degree of protection (IP) (EF005474): IP50
  • Model (EF000010): Incremental encoder
  • Signal outputs of rotary encoder (EF003590): A+B+0
  • Type of electric connection (EF003961): Cable
  • Type of shaft encoder (EF006968): Full shaft
  • Programmable (EF000841): No

More info

▲

Specifications

ModelIncremental encoder
Construction size40 mm
Pulses per rotation20
Signal outputsA, B, Z
Shaft diameter6 mm
Power supply voltage5-24 V
Output typeNPN
Connection methodCable
Cable length2 m

Accessories

E69-C06BAccessory encoder, shaft coupling for E6B2/E6C2-C/E6CP/E6D encoder
E69-C06MAccessory encoder, shaft coupling dia. 6mm, metal
E69-C610BShaft coupling for E6F-C encoder, Different end diameter
E69-C68BAccessory encoder, shaft coupling dia. 6mm and 8mm
