View larger
Images are for illustrative purposes only. Please refer to data sheet for details

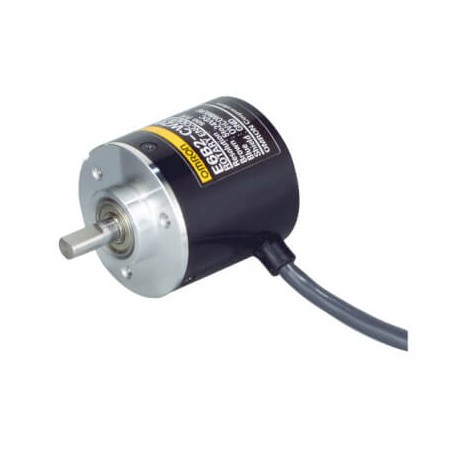

E6B2-CWZ5B 600P/R 2M E6B27121M E6B2CWZ5B600PR2MOMS OMRON Incremental ABZ 600ppr PNP 12-24vdc, Cable 2m
E6B2-CWZ5B 600P/R 2M
E6B27121M
E6B2CWZ5B600PR2MOMS
OMRON
1 Pcs.
Incremental ABZ 600ppr PNP 12-24vdc, Cable 2m
Encoder, incremental, 600ppr, 12-24 VDC, PNP output, 2m cable
Automation > Rotary encoder
E6B2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Specifications
| Model | Incremental encoder |
| Construction size | 40 mm |
| Pulses per rotation | 600 |
| Signal outputs | A, B, Z |
| Shaft diameter | 6 mm |
| Power supply voltage | 12-24 V |
| Output type | PNP |
| Connection method | Cable |
| Cable length | 2 m |
Accessories
| E69-C06B | Accessory encoder, shaft coupling for E6B2/E6C2-C/E6CP/E6D encoder | ||
| E69-C610B | Shaft coupling for E6F-C encoder, Different end diameter | ||
| E69-C68B | Accessory encoder, shaft coupling dia. 6mm and 8mm |
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Degree of protection (NEMA) (EF011959) | Other |
| Physical measurement principle (EF008238) | Optic |
| Degree of protection (IP) (EF005474) | IP50 |
| Standard for interfaces (EF004017) | Other |
| Model (EF000010) | Incremental encoder |
| Signal outputs of rotary encoder (EF003590) | A+B+0 |
| Type of transmission medium (EF007513) | Other |
| Type of electric connection (EF003961) | Cable |
| Housing material (EF001596) | Aluminium |
| Explosion safety category for gas (EF003997) | None |
| Type of shaft encoder (EF006968) | Full shaft |
| Programmable (EF000841) | No |
| Max. pulses per revolution (EF003589) | 600 |
| Construction size (EF012282) | 40 mm |
| Diameter axle (EF007110) | 5.979 mm |
| Number of steps per revolution (EF006938) | 600 |
| Number of revolutions (EF006943) | 0 |
