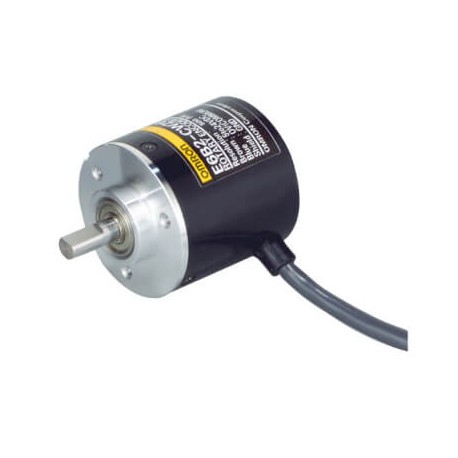

OMRON E6B2-CWZ5B 500P/R 2M E6B2-CWZ5B 500P/R 2M E6B27193G E6B2CWZ5B500PR2MOMS OMRON Incremental ABZ 500ppr PNP 12-24vdc, Cable 2m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E6B2-CWZ5B 500P/R 2M E6B27193G E6B2CWZ5B500PR2MOMS OMRON Incremental ABZ 500ppr PNP 12-24vdc, Cable 2m

E6B2-CWZ5B 500P/R 2M

E6B27193G

E6B2CWZ5B500PR2MOMS

OMRON

1 Pcs.

Incremental ABZ 500ppr PNP 12-24vdc, Cable 2m Encoder, incremental, 500 ppr, 12 to 24 VDC, PNP output, 2 m cable

Automation > Rotary encoder
E6B2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Rotational speed and positioning feedback are provided by the Omron E6B2-CWZ5B 500P/R 2M incremental encoder within automated assembly lines and drive systems. Such sensors play a critical role in closed-loop motor control by relaying accurate pulse signals to PLCs and controllers. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model: Incremental encoder
  • Construction size: 40 mm
  • Pulses per rotation: 500
  • Signal outputs: A, B, Z
  • Shaft diameter: 6 mm
  • Power supply voltage: 12-24 V
  • Output type: PNP
  • Connection method: Cable
  • Cable length: 2 m
  • Physical measurement principle (EF008238): Optic
  • Degree of protection (IP) (EF005474): IP50
  • Model (EF000010): Incremental encoder
  • Signal outputs of rotary encoder (EF003590): A+B+0
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Aluminium
  • Type of shaft encoder (EF006968): Full shaft

More info

▲

Specifications

ModelIncremental encoder
Construction size40 mm
Pulses per rotation500
Signal outputsA, B, Z
Shaft diameter6 mm
Power supply voltage12-24 V
Output typePNP
Connection methodCable
Cable length2 m

Accessories

E69-C06BAccessory encoder, shaft coupling for E6B2/E6C2-C/E6CP/E6D encoder
E69-C06MAccessory encoder, shaft coupling dia. 6mm, metal
E69-C610BShaft coupling for E6F-C encoder, Different end diameter
E69-C68BAccessory encoder, shaft coupling dia. 6mm and 8mm
