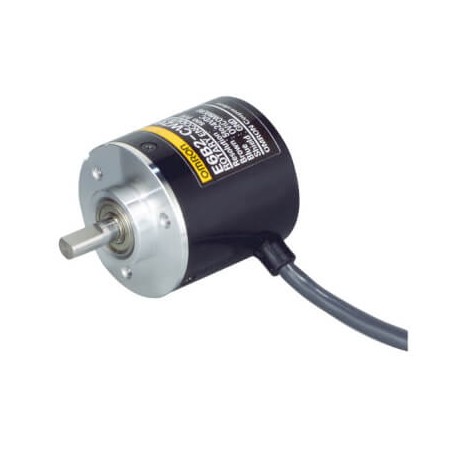

OMRON E6B2-CWZ5B 360P/R 2M E6B2-CWZ5B 360P/R 2M E6B27185F E6B2CWZ5B360PR2MOMS OMRON Incremental ABZ 360ppr PNP 12-24vdc, Cable 2m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E6B2-CWZ5B 360P/R 2M E6B27185F E6B2CWZ5B360PR2MOMS OMRON Incremental ABZ 360ppr PNP 12-24vdc, Cable 2m

E6B2-CWZ5B 360P/R 2M

E6B27185F

E6B2CWZ5B360PR2MOMS

OMRON

1 Pcs.

Incremental ABZ 360ppr PNP 12-24vdc, Cable 2m Encoder, incremental, 360 ppr, 12 to 24 VDC, PNP output, 0.5 m cable

Automation > Rotary encoder
E6B2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Monitoring rotation and angular movement is achieved using this Omron incremental encoder (E6B2-CWZ5B 360P/R 2M) in automated production lines. Such sensors generate precise pulse sequences to help control positioning accuracy in machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model: Incremental encoder
  • Construction size: 40 mm
  • Pulses per rotation: 360
  • Signal outputs: A, B, Z
  • Shaft diameter: 6 mm
  • Power supply voltage: 12-24 V
  • Output type: PNP
  • Connection method: Cable
  • Cable length: 2 m
  • Physical measurement principle (EF008238): Optic
  • Degree of protection (IP) (EF005474): IP50
  • Model (EF000010): Incremental encoder
  • Signal outputs of rotary encoder (EF003590): A+B+0
  • Type of transmission medium (EF007513): Copper
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Aluminium

More info

▲

Specifications

ModelIncremental encoder
Construction size40 mm
Pulses per rotation360
Signal outputsA, B, Z
Shaft diameter6 mm
Power supply voltage12-24 V
Output typePNP
Connection methodCable
Cable length2 m

Accessories

E69-C06BAccessory encoder, shaft coupling for E6B2/E6C2-C/E6CP/E6D encoder
E69-C06MAccessory encoder, shaft coupling dia. 6mm, metal
E69-C610BShaft coupling for E6F-C encoder, Different end diameter
E69-C68BAccessory encoder, shaft coupling dia. 6mm and 8mm
