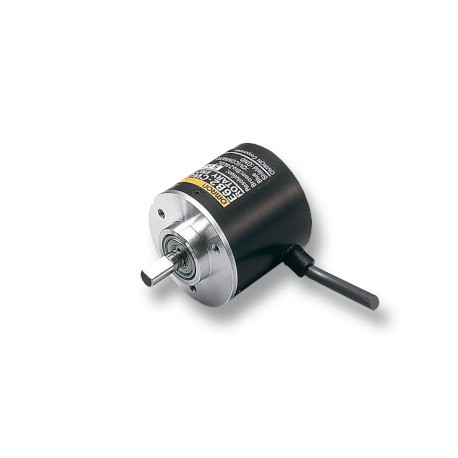

OMRON E6B2-CWZ3E 360P/R 0,5M E6B2-CWZ3E 360P/R 0,5M E6B27028M E6B2CWZ3E360PR05MOMS OMRON Incremental ABZ 360ppr NPN 5-12vdc Cable 0.5 m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E6B2-CWZ3E 360P/R 0,5M E6B27028M E6B2CWZ3E360PR05MOMS OMRON Incremental ABZ 360ppr NPN 5-12vdc Cable 0.5 m

E6B2-CWZ3E 360P/R 0,5M

E6B27028M

E6B2CWZ3E360PR05MOMS

OMRON

1 Pcs.

Incremental ABZ 360ppr NPN 5-12vdc Cable 0.5 m Encoder, incremental, 360ppr, 5-12 VDC, NPN voltage output, 0.5m cable

Automation > Rotary encoder
E6B2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Features

Compact size rotary encoder

The E6B family of incremental rotary encoders features a housing size dia 40mm.

  • Line driver output models available

Ordering information

Size dia. in mm

Power supply voltage

Output form

Resolution (pulse/rotation)

Order code

40

5 to 24 VDC

NPN open collector output

10, 20, 30, 40, 50, 60, 100, 200, 300, 360, 400, 500, 600, 720, 800, 1,000, 1,024, 1,200, 1,500 1,800, 2,000

E6B2-CWZ6C

12 to 24VDC

PNP open collector output

100, 200, 360, 500, 600, 1,000, 2,000

E6B2-CWZ5B

5 to 12 VDC

NPN voltage output

10, 20, 30, 40, 50, 60, 100, 200, 300, 360, 400, 500, 600, 1,000, 1,200, 1,500 1,800, 2,000

E6B2-CWZ3E

5 VDC

Line driver output

10, 20, 30, 40, 50, 60, 100, 200, 300, 360, 400, 500, 600, 1,000, 1,024, 1,200, 1,500 1,800, 2,000

E6B2-CWZ1X
