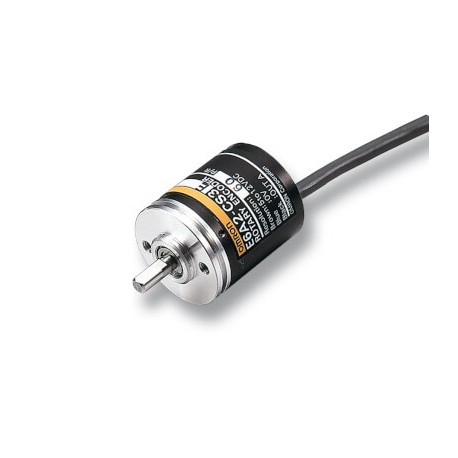

OMRON E6A2-CW3C 200P/R 0,5M E6A2-CW3C 200P/R 0,5M E6A21020R E6A2CW3C20005M OMRON Incremental AB 200ppr NPN 5-12vdc Cable 0.5 m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E6A2-CW3C 200P/R 0,5M E6A21020R E6A2CW3C20005M OMRON Incremental AB 200ppr NPN 5-12vdc Cable 0.5 m

E6A2-CW3C 200P/R 0,5M

E6A21020R

E6A2CW3C20005M

OMRON

1 Pcs.

Incremental AB 200ppr NPN 5-12vdc Cable 0.5 m Encoder, incremental, 200ppr, 5-12 VDC, NPN open collector, 0.5 m cable

Automation > Rotary encoder
E6A2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron E6A2-CW3C 200P/R 0,5M is an incremental encoder designed for precise rotational speed and position feedback in motion control loops. Industrial automation systems rely on rotary encoders to translate mechanical shaft rotation into electrical pulses for monitoring and positioning tasks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • 25: A
  • NPN open collector: 10, 20, 60, 100, 200, 300, 360, 500
  • 12 to 24VDC: E6A2-CS5C
  • A, B: 5 to 12 VDC
  • NPN open collector: 100, 200, 360, 500
  • 12 to 24VDC: E6A2-CW5C
  • A, B, Z: 5 to 12 VDC
  • NPN open collector: 100, 200, 360, 500
  • 12 to 24VDC: E6A2-CWZ5C
  • Degree of protection (IP) (EF005474): IP50
  • Model (EF000010): Incremental encoder
  • Construction size (EF012282): 25 mm
  • Diameter axle (EF007110): 3.988 mm

More info

▲
Features

Miniature size rotary encoder

The E6A family of rotary encoders features a small sized dia 25mm housing.

  • Small sized dia 25mm housing

Ordering information

Size dia. in mm

Output phase

Power supply voltage

Output form

Resolution (pulse/rotation)

Order code

25

A

5 to 12 VDC

NPN voltage output

10, 20, 60, 100, 200, 300, 360, 500

E6A2-CS3E

NPN open collector

10, 20, 60, 100, 200, 300, 360, 500

E6A2-CS3C

12 to 24VDC

E6A2-CS5C

A, B

5 to 12 VDC

NPN voltage output

100, 200, 360, 500

E6A2-CW3E

NPN open collector

100, 200, 360, 500

E6A2-CW3C

12 to 24VDC

E6A2-CW5C

A, B, Z

5 to 12 VDC

NPN voltage output

100, 200, 360, 500

E6A2-CWZ3E

NPN open collector

100, 200, 360, 500

E6A2-CWZ3C

12 to 24VDC

E6A2-CWZ5C
