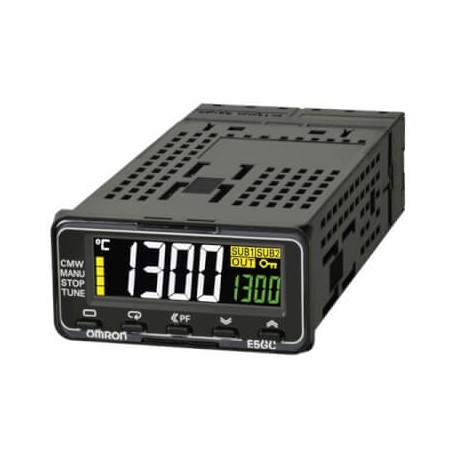

OMRON E5GC-RX1DCM-000 E5GC-RX1DCM-000 E5GC1007M 392102 OMRON Ctrl.Temp,Ent.Univ,Sal.Relay,1sal.aux,24Vdc/Vac,Fast Conx.,48x24 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E5GC-RX1DCM-000 E5GC1007M 392102 OMRON Ctrl.Temp,Ent.Univ,Sal.Relay,1sal.aux,24Vdc/Vac,Fast Conx.,48x24

E5GC-RX1DCM-000

E5GC1007M

E5GCRX1DCM000

OMRON

1 Pcs.

Temperature Controller, Universal Input, Relay Output, 1 Auxiliary output, 24Vcc/Vac, screwless terminal block, 48x24 Temp. controller PRO,1/32 DIN (24x48mm), screwless terminals,1 AUX,1 x relay OUT,24V AC/DC

Automation > Temperature monitoring relay
E5_C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Utilized for precise thermal management in compact control panels, the Omron E5GC-RX1DCM-000 temperature controller monitors and regulates heating or cooling cycles in industrial equipment. It accepts multiple sensor inputs to ensure stable process temperatures in tight spaces.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: 1/32 DIN (48 x 24 mm)
  • Functions: ON/OFF control, PID control
  • Number of control loops: 1
  • Temperature input type: B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
  • Linear analog input type: 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
  • Temperature range: -200-2300 °C
  • Number of event inputs: 0
  • Number of alarm outputs: 1
  • Supply voltage AC: 20.4-26.4 V
  • Supply voltage DC: 20.4-26.4 V
  • Control output: Relay
  • Terminal: Push-in
  • Voltage type (operating voltage): AC/DC
  • Type of electric connection: Screw connection
  • Voltage type (supply voltage): AC/DC
  • Error registration possible: No

More info

▲

Specifications

Size1/32 DIN (48 x 24 mm)
FunctionsON/OFF control, PID control
Number of control loops1
Temperature input typeB, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
Linear analog input type0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
Temperature range-200-2300 °C
Number of event inputs0
Number of alarm outputs1
Supply voltage AC20.4-26.4 V
Supply voltage DC20.4-26.4 V
Control outputRelay
TerminalPush-in
