View larger
Images are for illustrative purposes only. Please refer to data sheet for details

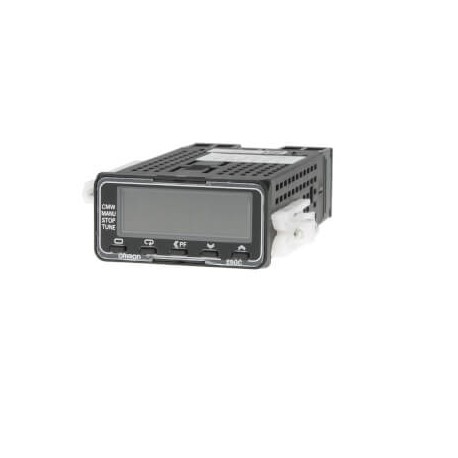

E5GC-RX1D6M-000 E5GC1005C E5GCRX1D6M000 OMRON Temperature Controller, Universal Input, Relay Output, 1 Auxil..
E5GC-RX1D6M-000
E5GC1005C
E5GCRX1D6M000
OMRON
1 Pcs.
Temperature Controller, Universal Input, Relay Output, 1 Auxiliary output, 24Vcc/Vac, screw terminal blocks, 48x24
Temp. controller PRO,1/32 DIN (24x48mm),screw terminals,1 AUX,1 x relay OUT,24V AC/DC
Automation > Temperature monitoring relay
E5_C
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Size1/32 DIN (48 x 24 mm)FunctionsON/OFF control, PID controlNumber of control loops1Temperature input typeB, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, ULinear analog input type0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mATemperature range-200-2300 °CNumber of event inputs0Number of alarm outputs1Supply voltage AC20.4-26.4 VSupply voltage DC20.4-26.4 VControl outputRelayTerminal typeScrew
| Feature Name | Feature Value |
|---|---|
| Voltage type (operating voltage) (EF005294) | AC/DC |
| Type of electric connection (EF003961) | Screw connection |
| Voltage type (supply voltage) (EF002991) | AC/DC |
| Error registration possible (EF003423) | No |
| External reset possible (EF003426) | No |
| With detachable clamps (EF003340) | No |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 2 |
| Width (EF000008) | 48 mm |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of measuring circuits (EF003425) | 1 |
| Height (EF000040) | 24 mm |
| Depth (EF000049) | 90 mm |
| Supply voltage AC 50 Hz (EF007532) | 24 V |
| Temperature measuring range (EF009788) | -200 °C |
| Supply voltage AC 60 Hz (EF007533) | 24 V |
| Supply voltage DC (EF007534) | 24 V |
