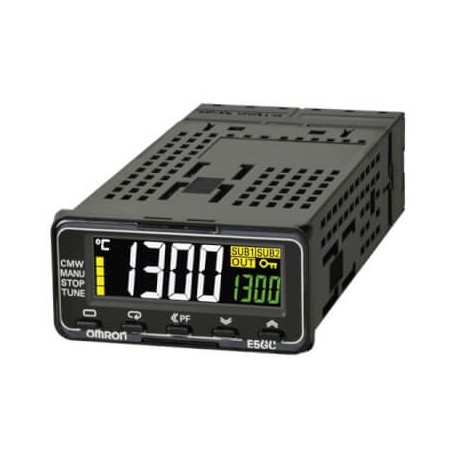

OMRON E5GC-QX2ACM-000 E5GC-QX2ACM-000 E5GC1042H 392127 OMRON Ctrl.Temp,Ent.Univ,Sal.SSR,2sal.aux,100-240VAC,Conx.rapid,48x24 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E5GC-QX2ACM-000 E5GC1042H 392127 OMRON Ctrl.Temp,Ent.Univ,Sal.SSR,2sal.aux,100-240VAC,Conx.rapid,48x24

E5GC-QX2ACM-000

E5GC1042H

E5GCQX2ACM000

OMRON

1 Pcs.

Ctrl.Temp,Ent.Univ,Salt.SSR,2sal.aux,100-240VAC,Conx.quick,48x24 Temp. controller PRO,1/32 DIN (24x48mm), screwless terminals,2 AUX,1 x 12 VDC pulse OUT,100-240 VAC

Automation > Temperature monitoring relay
E5_C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron part number E5GC-QX2ACM-000 is a reliable temperature controller designed for fast-paced industrial environments requiring precise thermal regulation. PID temperature controllers process sensor inputs to dynamically manage heating and cooling output, preventing thermal drift in sensitive manufacturing operations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: 1/32 DIN (48 x 24 mm)
  • Functions: ON/OFF control, PID control
  • Number of control loops: 1
  • Temperature input type: B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
  • Linear analog input type: 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
  • Temperature range: -200-2300 °C
  • Number of event inputs: 0
  • Number of alarm outputs: 2
  • Supply voltage AC: 100-240 V
  • Control output: Voltage pulse
  • Terminal: Push-in
  • Voltage type (operating voltage) (EF005294): AC
  • Type of electric connection (EF003961): Spring clamp connection
  • Voltage type (supply voltage) (EF002991): AC
  • Error registration possible (EF003423): No
  • External reset possible (EF003426): No

More info

▲

Specifications

Size1/32 DIN (48 x 24 mm)
FunctionsON/OFF control, PID control
Number of control loops1
Temperature input typeB, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
Linear analog input type0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
Temperature range-200-2300 °C
Number of event inputs0
Number of alarm outputs2
Supply voltage AC100-240 V
Control outputVoltage pulse
TerminalPush-in
