View larger
Images are for illustrative purposes only. Please refer to data sheet for details

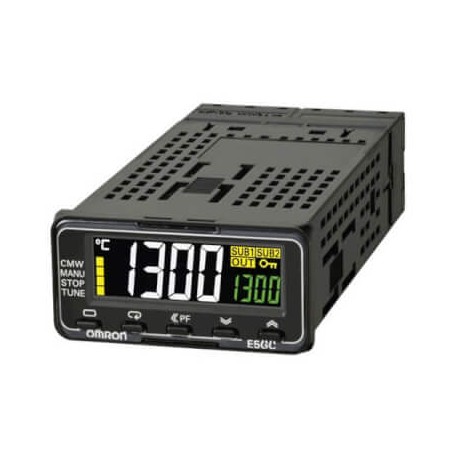

E5GC-QX1DCM-015 E5GC1047R 392130 OMRON Ctrl.Temp,Ent.Univ,Sal.SSR,1sal.aux,RS485,24Vdc/Vac,Conx.Rapid,48x24
E5GC-QX1DCM-015
E5GC1047R
E5GCQX1DCM015
OMRON
1 Pcs.
Ctrl.Temp,Ent.Univ,Salt.SSR,1sal.aux,RS485,24vdc/Vac,Conx.quick,48x24
Ctrl.Temp,Ent.Univ,Sal.SSR,1sal.aux,RS485,24Vcc/Vac,Conx.fast,48x24
Temp. controller PRO,1/32 DIN (24x48mm), screwless terminals,1 AUX,1 x 12 VDC pulse OUT,RS-485,24V AC/DC
Automation > Temperature monitoring relay
E5_C
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Specifications
| Size | 1/32 DIN (48 x 24 mm) |
| Functions | ON/OFF control, PID control |
| Number of control loops | 1 |
| Temperature input type | B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U |
| Linear analog input type | 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA |
| Temperature range | -200-2300 °C |
| Number of event inputs | 0 |
| Number of alarm outputs | 1 |
| Supply voltage AC | 20.4-26.4 V |
| Supply voltage DC | 20.4-26.4 V |
| Control output | Voltage pulse |
| Communication port(s) | Serial RS-485 |
| Terminal type | Push-in |
Accessories
| Feature Name | Feature Value |
|---|---|
| Voltage type (operating voltage) (EF005294) | AC/DC |
| Type of electric connection (EF003961) | Screw connection |
| Voltage type (supply voltage) (EF002991) | AC/DC |
| Error registration possible (EF003423) | No |
| External reset possible (EF003426) | No |
| With detachable clamps (EF003340) | No |
| Number of contacts as change-over contact (EF008257) | 1 |
| Number of contacts as normally open contact (EF008256) | 1 |
| Width (EF000008) | 24 mm |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of measuring circuits (EF003425) | 1 |
| Height (EF000040) | 48 mm |
| Depth (EF000049) | 90 mm |
| Supply voltage AC 50 Hz (EF007532) | 21.6 V |
| Temperature measuring range (EF009788) | -200 °C |
| Supply voltage AC 60 Hz (EF007533) | 21.6 V |
| Supply voltage DC (EF007534) | 21.6 V |
