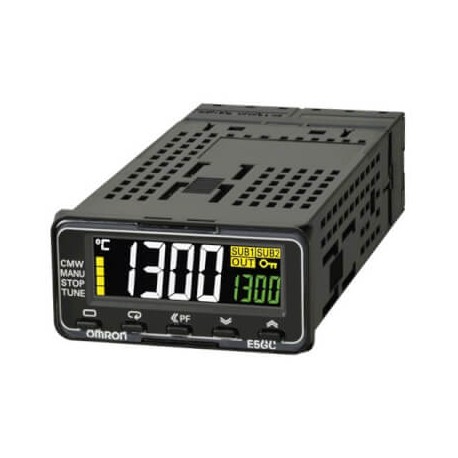

OMRON E5GC-QX1A6M-000 E5GC-QX1A6M-000 E5GC1036C 392093 OMRON Ctrl.Temp,Ent.Univ,Sal.SSR,1sal.aux,100-240VAC,Screw,48x24 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E5GC-QX1A6M-000 E5GC1036C 392093 OMRON Ctrl.Temp,Ent.Univ,Sal.SSR,1sal.aux,100-240VAC,Screw,48x24

E5GC-QX1A6M-000

E5GC1036C

E5GCQX1A6M000

OMRON

1 Pcs.

Temperature Controller, Universal Input, SSR Output, 1 Auxiliary output, 100-240VAC, screw terminal blocks, 48x24 Temp. controller PRO,1/32 DIN (24x48mm),screw terminals,1 AUX,1 x 12 VDC pulse OUT,100-240 VAC

Automation > Temperature monitoring relay
E5_C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron model E5GC-QX1A6M-000 functions as a compact temperature controller designed for industrial process management. Temperature controllers of this category provide stable closed-loop regulation of thermal environments within machinery, ovens, and climate chambers. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: 1/32 DIN (48 x 24 mm)
  • Functions: ON/OFF control, PID control
  • Number of control loops: 1
  • Temperature input type: B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
  • Linear analog input type: 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
  • Temperature range: -200-2300 °C
  • Number of event inputs: 0
  • Number of alarm outputs: 1
  • Supply voltage AC: 100-240 V
  • Control output: Voltage pulse
  • Terminal: Screw
  • Voltage type (operating voltage): AC
  • Type of electric connection: Screw connection
  • Voltage type (supply voltage): AC
  • Error registration possible: No
  • External reset possible: No

More info

▲

Specifications

Size1/32 DIN (48 x 24 mm)
FunctionsON/OFF control, PID control
Number of control loops1
Temperature input typeB, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
Linear analog input type0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
Temperature range-200-2300 °C
Number of event inputs0
Number of alarm outputs1
Supply voltage AC100-240 V
Control outputVoltage pulse
TerminalScrew
