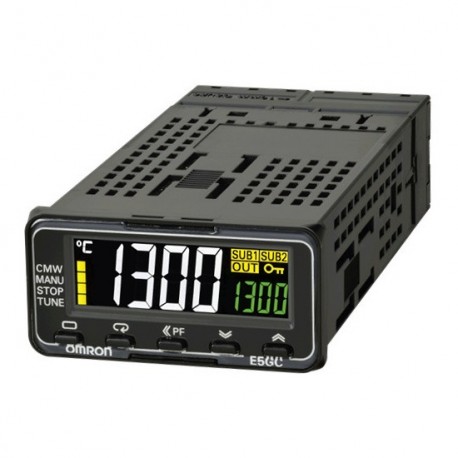

OMRON E5GC-QX0DCM-000 E5GC-QX0DCM-000 E5GC1035E E5GCQX0DCM000 OMRON Ctrl.Temp,Ent.Univ,Salt.SSR,24vdc/Vac,Conx.quick,48x24 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E5GC-QX0DCM-000 E5GC1035E E5GCQX0DCM000 OMRON Ctrl.Temp,Ent.Univ,Salt.SSR,24vdc/Vac,Conx.quick,48x24

E5GC-QX0DCM-000

E5GC1035E

E5GCQX0DCM000

OMRON

1 Pcs.

Ctrl.Temp,Ent.Univ,Salt.SSR,24vdc/Vac,Conx.quick,48x24 Ctrl.Temp,Ent.Univ,Sal.SSR,24Vcc/Vac,Conx.fast,48x24 Temp. controller PRO,1/32 DIN (24x48mm), screwless terminals,No AUX Rel.,1 x 12 VDC pulse OUT,24V AC/DC

Automation > Temperature monitoring relay
E5_C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron temperature controller (part number E5GC-QX0DCM-000) is commonly applied in manufacturing environments to manage thermal dynamics within ovens, kilns, and packaging machinery. Such units accept sensor inputs to dynamically adjust heating outputs and maintain strict process thresholds. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (operating voltage): AC/DC
  • Type of electric connection: Spring clamp connection
  • Voltage type (supply voltage): AC/DC
  • Error registration possible: No
  • External reset possible: No
  • With detachable clamps: No
  • Number of contacts as change-over contact: 0
  • Number of contacts as normally open contact: 1
  • Width: 48 mm
  • Number of contacts as normally closed contact: 0
  • Number of measuring circuits: 1
  • Height: 24 mm
  • Depth: 93 mm
  • Supply voltage AC 50 Hz: 24 V
  • Temperature measuring range: -200 °C
  • Supply voltage AC 60 Hz: 24 V

More info

▲
  • Fast and precise regulation: 50 ms sampling loop period time
  • Easy to set up, and operate intuitively via CX-Thermo without power supply
  • Best contrast display using white LCD technology which is visible from a far distance and from any angle
  • Useful alarm and diagnosis functions for secure operation
  • Practical timer and logic operation functions eliminating the need of a PLC
  • Additional models with different features are available. Please check related product catalogue.
