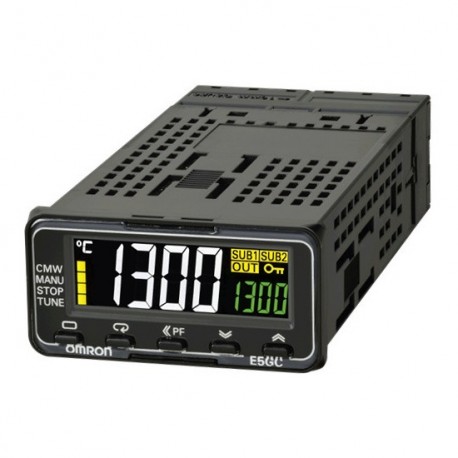

OMRON E5GC-QX0A6M-000 E5GC-QX0A6M-000 E5GC1032M E5GCQX0A6M000 OMRON Temperature Controller, Universal Input, SSR Output, 100-240VA.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E5GC-QX0A6M-000 E5GC1032M E5GCQX0A6M000 OMRON Temperature Controller, Universal Input, SSR Output, 100-240VA..

E5GC-QX0A6M-000

E5GC1032M

E5GCQX0A6M000

OMRON

1 Pcs.

Temperature Controller, Universal Input, SSR Output, 100-240VAC, screw terminal blocks, 48x24 Ctrl.Temp,Ent.Univ,Sal.SSR,100-240VAC,Screw,48x24 Temp. controller PRO,1/32 DIN (24x48mm),screw terminals,No AUX Rel.,1 x 12 VDC pulse OUT,100-240 VAC

Automation > Temperature monitoring relay
E5_C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron item E5GC-QX0A6M-000 functions as a compact temperature controller designed to manage industrial heating and cooling operations. Such controllers maintain strict process temperatures in automated equipment by evaluating sensor signals and modulating solid-state outputs to achieve steady thermal regulation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (operating voltage) (EF005294): AC
  • Type of electric connection (EF003961): Screw connection
  • Voltage type (supply voltage) (EF002991): AC
  • Error registration possible (EF003423): No
  • External reset possible (EF003426): No
  • With detachable clamps (EF003340): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Width (EF000008): 48 mm
  • Number of contacts as normally closed contact (EF008255): 0
  • Number of measuring circuits (EF003425): 1
  • Height (EF000040): 24 mm
  • Depth (EF000049): 90 mm
  • Supply voltage AC 50 Hz (EF007532): 100 V
  • Temperature measuring range (EF009788): -200 °C
  • Supply voltage AC 60 Hz (EF007533): 100 V

More info

▲
  • Fast and precise regulation: 50 ms sampling loop period time
  • Easy to set up, and operate intuitively via CX-Thermo without power supply
  • Best contrast display using white LCD technology which is visible from a far distance and from any angle
  • Useful alarm and diagnosis functions for secure operation
  • Practical timer and logic operation functions eliminating the need of a PLC
  • Additional models with different features are available. Please check related product catalogue.
