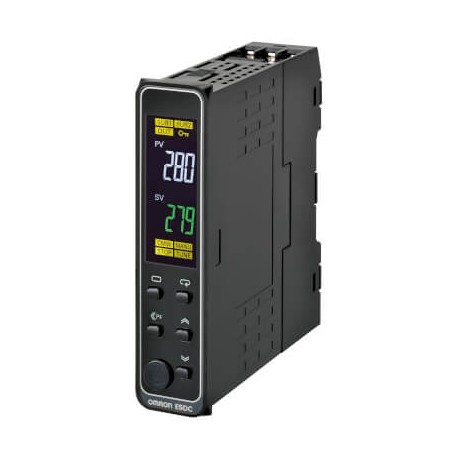

OMRON E5DC-RX2DSM-000 E5DC-RX2DSM-000 E5DC1001M 377922 OMRON Ent. Universal, relay output,2Aux,24Vdc/VAC,22,5X96 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E5DC-RX2DSM-000 E5DC1001M 377922 OMRON Ent. Universal, relay output,2Aux,24Vdc/VAC,22,5X96

E5DC-RX2DSM-000

E5DC1001M

E5DCRX2DSM000

OMRON

1 Pcs.

Ent. Universal output relay,2Aux,24vdc/Vac 22,5X96 Temp. controller, PRO, DIN Rail 22,5mm, Uni. I/P,1 x Rel. OUT,2 AUX,No cov.,24VAC/DC

Automation > Temperature monitoring relay
E5_C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron E5DC-RX2DSM-000 temperature controller is a compact automation device used to govern thermal loops in space-constrained control cabinets. These controllers accept various thermocouple and analog signals to maintain precise temperature profiles across industrial machinery and processing units.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: 22.5 mm
  • Functions: PID control
  • Number of control loops: 1
  • Temperature input type: B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
  • Linear analog input type: 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
  • Temperature range: -200-2300 °C
  • Number of event inputs: 0
  • Number of alarm outputs: 2
  • Supply voltage AC: 20.4-26.4 V
  • Supply voltage DC: 20.4-26.4 V
  • Control output: Relay
  • Terminal: Screw
  • Voltage type (operating voltage): AC/DC
  • Type of electric connection: Screw connection
  • Voltage type (supply voltage): AC/DC
  • Error registration possible: No

More info

▲

Specifications

Size22.5 mm
FunctionsPID control
Number of control loops1
Temperature input typeB, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
Linear analog input type0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
Temperature range-200-2300 °C
Number of event inputs0
Number of alarm outputs2
Supply voltage AC20.4-26.4 V
Supply voltage DC20.4-26.4 V
Control outputRelay
TerminalScrew
