View larger
Images are for illustrative purposes only. Please refer to data sheet for details

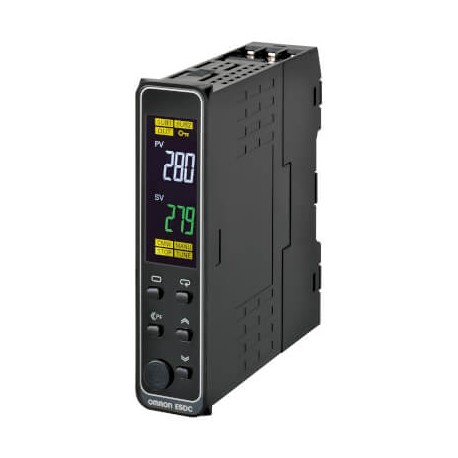

E5DC-RX2ASM-002 E5DC1002H E5DCRX2ASM002 OMRON Ent. Universal output relay, 2 Aux,com, RS485, HBA, Ac 100,240..
E5DC-RX2ASM-002
E5DC1002H
E5DCRX2ASM002
OMRON
1 Pcs.
Ent. Universal output relay, 2 Aux,com, RS485, HBA, Ac 100,240,22,5X96
Ent. Universal, relay output, 2 Aux,com RS485, HBA, Ac 100,240,22,5X96
Temp. controller, PRO, DIN Rail 22,5mm, Uni. I/P,1 x Rel. OUT,2 AUX,RS-485,Ht. Burnout SSR fail.,No cov.,100-240 VAC
Automation > Temperature monitoring relay
E5_C
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Specifications
| Size | 22.5 mm |
| Functions | HB/HS alarm for 1-phase heaters, PID control |
| Number of control loops | 1 |
| Temperature input type | B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U |
| Linear analog input type | 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA |
| Temperature range | -200-2300 °C |
| Number of event inputs | 0 |
| Number of alarm outputs | 2 |
| Supply voltage AC | 100-240 V |
| Control output | Relay |
| Communication port(s) | Serial RS-485 |
| Terminal | Screw |
| Feature Name | Feature Value |
|---|---|
| Voltage type (operating voltage) (EF005294) | AC |
| Type of electric connection (EF003961) | Screw connection |
| Voltage type (supply voltage) (EF002991) | AC |
| Error registration possible (EF003423) | No |
| External reset possible (EF003426) | No |
| With detachable clamps (EF003340) | No |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 2 |
| Width (EF000008) | 22.5 mm |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of measuring circuits (EF003425) | 1 |
| Height (EF000040) | 96 mm |
| Depth (EF000049) | 85 mm |
| Supply voltage AC 50 Hz (EF007532) | 100 V |
| Temperature measuring range (EF009788) | -200 °C |
| Supply voltage AC 60 Hz (EF007533) | 100 V |
