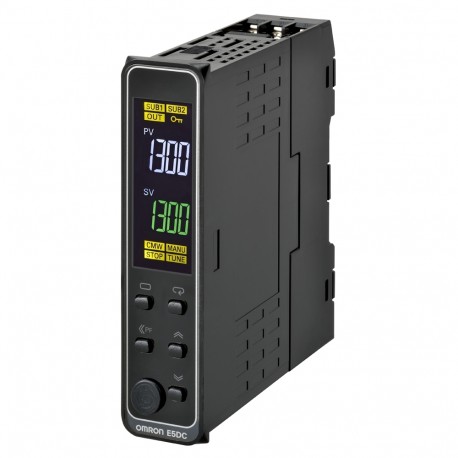

OMRON E5DC-QX2DSM-017 E5DC-QX2DSM-017 E5DC1015M E5DCQX2DSM017 OMRON Ent. Universal, output SSR,2 Aux,1 event, HBA, 24vdc/Vac 22,5X.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E5DC-QX2DSM-017 E5DC1015M E5DCQX2DSM017 OMRON Ent. Universal, output SSR,2 Aux,1 event, HBA, 24vdc/Vac 22,5X..

E5DC-QX2DSM-017

E5DC1015M

E5DCQX2DSM017

OMRON

1 Pcs.

Ent. Universal, output SSR,2 Aux,1 event, HBA, 24vdc/Vac 22,5X96 Ent. Universal, SSR output,2 Aux,1 event, HBA, 24Vcc/Vca,22,5X96 Temp. controller, PRO, DIN Rail 22,5mm, Uni. I/P,1 x 12 VDC pulse OUT,2 AUX,EVT. I/P 1,Ht. Burnout SSR fail.,No cov.,24VAC/DC

Automation > Temperature monitoring relay
E5_C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron E5DC-QX2DSM-017 is a DIN rail mounted temperature controller applied in automation panels to govern process heating and cooling. These controllers process input signals to maintain strict thermal regulation in industrial environments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (operating voltage): AC/DC
  • Type of electric connection: Screw connection
  • Voltage type (supply voltage): AC/DC
  • Error registration possible: No
  • External reset possible: No
  • With detachable clamps: No
  • Number of contacts as change-over contact: 0
  • Number of contacts as normally open contact: 3
  • Width: 22.5 mm
  • Number of contacts as normally closed contact: 0
  • Number of measuring circuits: 1
  • Height: 96 mm
  • Depth: 86 mm
  • Supply voltage AC 50 Hz: 21.6 V
  • Temperature measuring range: -200 °C
  • Supply voltage AC 60 Hz: 21.6 V

More info

▲
  • Fast and precise regulation: 50 ms sampling loop period time
  • Easy to set up, and operate intuitively via CX-Thermo without power supply
  • Best contrast display using white LCD technology which is visible from a far distance and from any angle
  • Useful alarm and diagnosis functions for secure operation
  • Practical timer and logic operation functions eliminating the need of a PLC
  • Additional models with different features are available. Please check related product catalogue.
