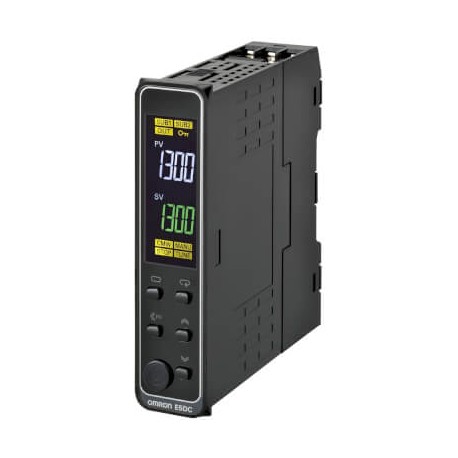

OMRON E5DC-QX2ASM-017 E5DC-QX2ASM-017 E5DC1014A E5DCQX2ASM017 OMRON Ent. Universal, output SSR,2 Aux,1 event, HBA, Ac 100,240,22,5.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E5DC-QX2ASM-017 E5DC1014A E5DCQX2ASM017 OMRON Ent. Universal, output SSR,2 Aux,1 event, HBA, Ac 100,240,22,5..

E5DC-QX2ASM-017

E5DC1014A

E5DCQX2ASM017

OMRON

1 Pcs.

Ent. Universal, output SSR,2 Aux,1 event, HBA, Ac 100,240,22,5X96 Temp. controller, PRO, DIN Rail 22,5mm, Uni. I/P,1 x 12 VDC pulse OUT,2 AUX,EVT. I/P 1,Ht. Burnout SSR fail.,No cov.,100-240 VAC

Automation > Temperature monitoring relay
E5_C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron E5DC-QX2ASM-017 is a narrow-profile temperature controller featuring integrated heater burnout alarm functions for solid-state relay applications. Space-constrained control panels utilize this unit to ensure safe and dependable thermal regulation.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: 22.5 mm
  • Functions: HB/HS alarm for 1-phase heaters, PID control
  • Number of control loops: 1
  • Temperature input type: B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
  • Linear analog input type: 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
  • Temperature range: -200-2300 °C
  • Number of event inputs: 1
  • Number of alarm outputs: 2
  • Supply voltage AC: 100-240 V
  • Control output: Voltage pulse
  • Terminal: Screw
  • Voltage type (operating voltage) (EF005294): AC
  • Type of electric connection (EF003961): Screw connection
  • Voltage type (supply voltage) (EF002991): AC
  • Error registration possible (EF003423): No
  • External reset possible (EF003426): No

More info

▲

Specifications

Size22.5 mm
FunctionsHB/HS alarm for 1-phase heaters, PID control
Number of control loops1
Temperature input typeB, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
Linear analog input type0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
Temperature range-200-2300 °C
Number of event inputs1
Number of alarm outputs2
Supply voltage AC100-240 V
Control outputVoltage pulse
TerminalScrew
