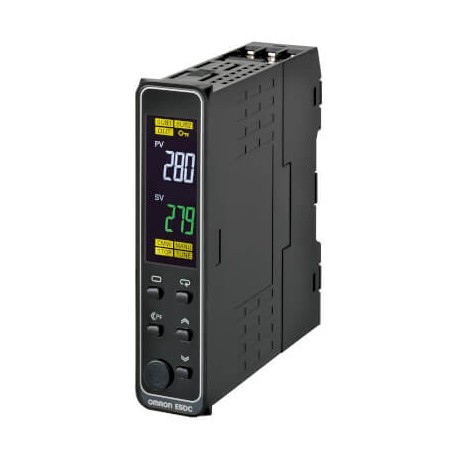

OMRON E5DC-QX2ASM-002 E5DC-QX2ASM-002 E5DC1010R 377931 OMRON Ent. Universal, SSR Output,2 Aux,com RS485,HBA,AC 100,240,22,5X96 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E5DC-QX2ASM-002 E5DC1010R 377931 OMRON Ent. Universal, SSR Output,2 Aux,com RS485,HBA,AC 100,240,22,5X96

E5DC-QX2ASM-002

E5DC1010R

E5DCQX2ASM002

OMRON

1 Pcs.

Ent. Universal, output SSR,2 Aux,com, RS485, HBA, Ac 100,240,22,5X96 Temp. controller, PRO, DIN Rail 22,5mm, Uni. I/P,1 x 12 VDC pulse OUT,2 AUX,RS-485,Ht. Burnout SSR fail.,No cov.,100-240 VAC

Automation > Temperature monitoring relay
E5_C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron universal temperature controller (E5DC-QX2ASM-002) is deployed in industrial automation to regulate thermal processes by accepting various sensor inputs and driving control loops with precision. These compact devices monitor heating or cooling parameters in machinery and process panels, helping maintain strict temperature setpoints. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: 22.5 mm
  • Functions: HB/HS alarm for 1-phase heaters, PID control
  • Number of control loops: 1
  • Temperature input type: B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
  • Linear analog input type: 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
  • Temperature range: -200-2300 °C
  • Number of event inputs: 0
  • Number of alarm outputs: 2
  • Supply voltage AC: 100-240 V
  • Control output: Voltage pulse
  • Communication port(s): Serial RS-485
  • Terminal: Screw
  • Voltage type (operating voltage) (EF005294): AC
  • Type of electric connection (EF003961): Screw connection
  • Voltage type (supply voltage) (EF002991): AC
  • Error registration possible (EF003423): No

More info

▲

Specifications

Size22.5 mm
FunctionsHB/HS alarm for 1-phase heaters, PID control
Number of control loops1
Temperature input typeB, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
Linear analog input type0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
Temperature range-200-2300 °C
Number of event inputs0
Number of alarm outputs2
Supply voltage AC100-240 V
Control outputVoltage pulse
Communication port(s)Serial RS-485
TerminalScrew
