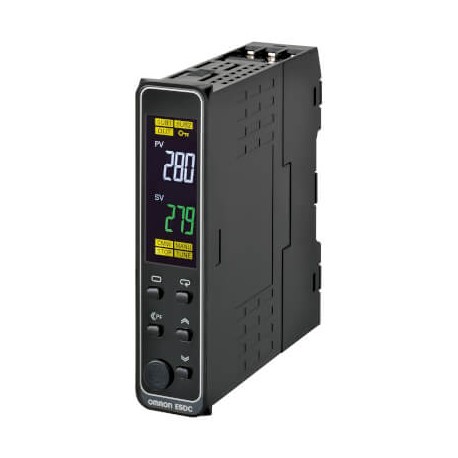

OMRON E5DC-QX2ASM-000 E5DC-QX2ASM-000 E5DC1008G 377929 OMRON Ent. Universal, SSR output, 2 Aux, AC 100,240,22,5X96 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E5DC-QX2ASM-000 E5DC1008G 377929 OMRON Ent. Universal, SSR output, 2 Aux, AC 100,240,22,5X96

E5DC-QX2ASM-000

E5DC1008G

E5DCQX2ASM000

OMRON

1 Pcs.

Ent. Universal, output SSR,2 Aux, Ac 100,240,22,5X96 Temp. controller, PRO, DIN Rail 22,5mm, Uni. I/P,1 x 12 VDC pulse OUT,2 AUX,No cov.,100-240 VAC

Automation > Temperature monitoring relay
E5_C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Regulating industrial heat processes with high spatial efficiency is the typical role of the Omron E5DC-QX2ASM-000 universal temperature controller. These compact panel-mounted devices are deployed in crowded electrical enclosures to manage thermal regulation loops across automated production lines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (operating voltage) (EF005294): AC
  • Type of electric connection (EF003961): Screw connection
  • Voltage type (supply voltage) (EF002991): AC
  • Error registration possible (EF003423): No
  • External reset possible (EF003426): No
  • With detachable clamps (EF003340): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 2
  • Width (EF000008): 22.5 mm
  • Number of contacts as normally closed contact (EF008255): 0
  • Number of measuring circuits (EF003425): 1
  • Height (EF000040): 96 mm
  • Depth (EF000049): 85 mm
  • Supply voltage AC 50 Hz (EF007532): 100 V
  • Temperature measuring range (EF009788): -200 °C
  • Supply voltage AC 60 Hz (EF007533): 100 V

More info

▲
Size22.5 mmFunctionsPID controlNumber of control loops1Temperature input typeB, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, ULinear analog input type0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mATemperature range-200-2300 °CNumber of event inputs0Number of alarm outputs2Supply voltage AC100-240 VControl outputVoltage pulseTerminal typeScrew
