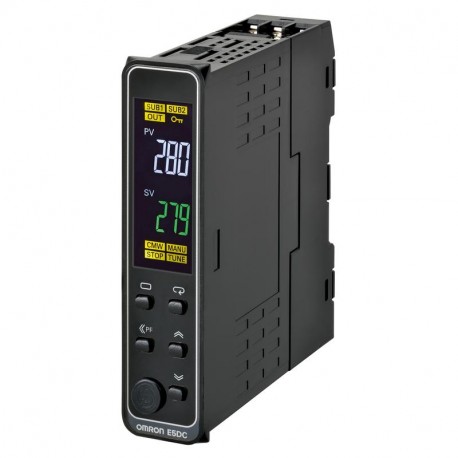

OMRON E5DC-QX0ASM-015 E5DC-QX0ASM-015 E5DC1012E E5DCQX0ASM015 OMRON Ent. Universal, output SSR, com, RS485,Ac 100,240,22,5X96 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E5DC-QX0ASM-015 E5DC1012E E5DCQX0ASM015 OMRON Ent. Universal, output SSR, com, RS485,Ac 100,240,22,5X96

E5DC-QX0ASM-015

E5DC1012E

E5DCQX0ASM015

OMRON

1 Pcs.

Ent. Universal, output SSR, com, RS485,Ac 100,240,22,5X96 Ent. Universal, SSR output, with RS485,Ac 100,240,22,5X96 Temp. controller, PRO, DIN Rail 22,5mm, Uni. I/P,1 x 12 VDC pulse OUT,No AUX,RS-485,No cov.,100-240 VAC

Automation > Temperature monitoring relay
E5_C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron temperature controller, item E5DC-QX0ASM-015, offers narrow-profile thermal management for space-constrained electrical enclosures. It processes universal inputs to provide reliable PID regulation for automated heating and cooling equipment in production facilities.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: 22.5 mm
  • Functions: PID control
  • Number of control loops: 1
  • Temperature input type: B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
  • Linear analog input type: 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
  • Temperature range: -200-2300 °C
  • Number of event inputs: 0
  • Number of alarm outputs: 0
  • Supply voltage AC: 100-240 V
  • Control output: Voltage pulse
  • Communication port(s): Serial RS-485
  • Terminal: Screw
  • Voltage type (operating voltage) (EF005294): AC
  • Type of electric connection (EF003961): Screw connection
  • Voltage type (supply voltage) (EF002991): AC
  • Error registration possible (EF003423): No

More info

▲

Specifications

Size22.5 mm
FunctionsPID control
Number of control loops1
Temperature input typeB, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
Linear analog input type0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
Temperature range-200-2300 °C
Number of event inputs0
Number of alarm outputs0
Supply voltage AC100-240 V
Control outputVoltage pulse
Communication port(s)Serial RS-485
TerminalScrew
