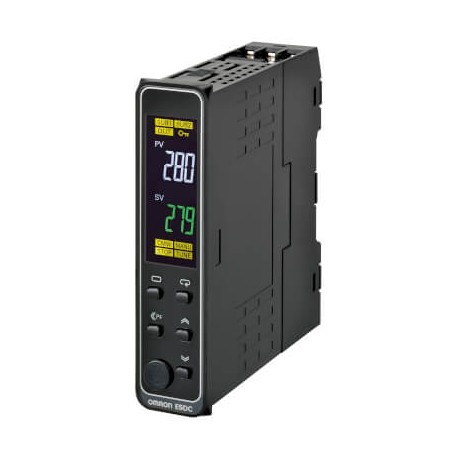

OMRON E5DC-CX2DSM-015 E5DC-CX2DSM-015 E5DC1021D 377942 OMRON Ent. Universal, current output, 2 Aux, com RS 485 24Vdc/Vac, 22.5X96 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E5DC-CX2DSM-015 E5DC1021D 377942 OMRON Ent. Universal, current output, 2 Aux, com RS 485 24Vdc/Vac, 22.5X96

E5DC-CX2DSM-015

E5DC1021D

E5DCCX2DSM015

OMRON

1 Pcs.

Ent. Universal, output-current,2 Aux, com RS 485 24vdc/Vac 22,5X96 Temp. controller, PRO, DIN Rail 22,5mm, Uni. I/P,1x0/4-20mA curr. OUT,2 AUX,RS-485,No cov.,24VAC/DC

Automation > Temperature monitoring relay
E5_C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron E5DC-CX2DSM-015 temperature controller provides advanced PID regulation and universal input handling for complex thermal management in industrial automation setups. Units like this manage heating and cooling cycles within control panels where panel space is at a premium. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: 22.5 mm
  • Functions: PID control
  • Number of control loops: 1
  • Temperature input type: B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
  • Linear analog input type: 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
  • Temperature range: -200-2300 °C
  • Number of event inputs: 0
  • Number of alarm outputs: 2
  • Supply voltage AC: 20.4-26.4 V
  • Supply voltage DC: 20.4-26.4 V
  • Control output: Linear current
  • Communication port(s): Serial RS-485
  • Terminal: Screw
  • Voltage type (operating voltage) (EF005294): AC/DC
  • Type of electric connection (EF003961): Screw connection
  • Voltage type (supply voltage) (EF002991): AC/DC

More info

▲

Specifications

Size22.5 mm
FunctionsPID control
Number of control loops1
Temperature input typeB, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
Linear analog input type0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
Temperature range-200-2300 °C
Number of event inputs0
Number of alarm outputs2
Supply voltage AC20.4-26.4 V
Supply voltage DC20.4-26.4 V
Control outputLinear current
Communication port(s)Serial RS-485
TerminalScrew
