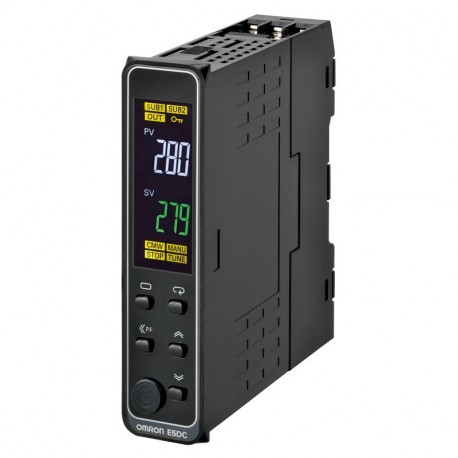

OMRON E5DC-CX2ASM-000 E5DC-CX2ASM-000 E5DC1016H E5DCCX2ASM000 OMRON Ent. Universal, output-current,2Aux,Ac 100,240,22,5X96 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E5DC-CX2ASM-000 E5DC1016H E5DCCX2ASM000 OMRON Ent. Universal, output-current,2Aux,Ac 100,240,22,5X96

E5DC-CX2ASM-000

E5DC1016H

E5DCCX2ASM000

OMRON

1 Pcs.

Ent. Universal, output-current,2Aux,Ac 100,240,22,5X96 Temp. controller, PRO, DIN Rail 22,5mm, Uni. I/P,1x0/4-20mA curr. OUT,2 AUX,No cov.,100-240 VAC

Automation > Temperature monitoring relay
E5_C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Serving as an advanced process automation tool, the Omron E5DC-CX2ASM-000 ent. universal, output-current,2aux,ac 100,240,22,5x96 governs thermal variables within industrial machinery by processing sensor feedback and modulating output signals. Such controllers are standard in applications requiring stable heat management, such as packaging equipment and environmental test chambers.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Size: 22.5 mm
  • Functions: PID control
  • Number of control loops: 1
  • Temperature input type: B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
  • Linear analog input type: 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
  • Temperature range: -200-2300 °C
  • Number of event inputs: 0
  • Number of alarm outputs: 2
  • Supply voltage AC: 100-240 V
  • Control output: Linear current
  • Terminal: Screw
  • Voltage type (operating voltage) (EF005294): AC
  • Type of electric connection (EF003961): Screw connection
  • Voltage type (supply voltage) (EF002991): AC
  • Error registration possible (EF003423): No
  • External reset possible (EF003426): No

More info

▲

Specifications

Size22.5 mm
FunctionsPID control
Number of control loops1
Temperature input typeB, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
Linear analog input type0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
Temperature range-200-2300 °C
Number of event inputs0
Number of alarm outputs2
Supply voltage AC100-240 V
Control outputLinear current
TerminalScrew

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
