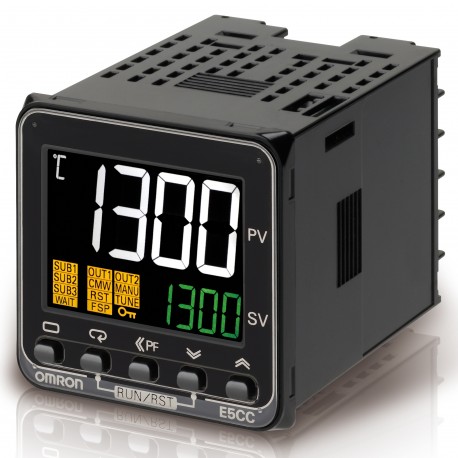

OMRON E5CC-TRX3D5M-000 E5CC-TRX3D5M-000 E5CC5501M 385243 OMRON Ctrl.Temp,Ent.Univ,Sal.Relay,3sal.aux,24Vdc/Vac,Screw,48x48 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E5CC-TRX3D5M-000 E5CC5501M 385243 OMRON Ctrl.Temp,Ent.Univ,Sal.Relay,3sal.aux,24Vdc/Vac,Screw,48x48

E5CC-TRX3D5M-000

E5CC5501M

E5CCTRX3D5M000

OMRON

1 Pcs.

Ctrl.Temp,Ent.Univ,Salt.relay,3sal.aux,24vdc/Vac,Screw,48x48 Temp. controller, PRO, 1/16 DIN (48 x 48 mm), Progr., 3 AUX, 1 x Relay OUT, 24V AC/DC

Automation > Temperature monitoring relay
E5_C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron temperature controller is an electronic device utilized in industrial settings to monitor and regulate thermal processes across heating and cooling equipment. Units of this type help maintain precise temperature setpoints in manufacturing machinery, packaging lines, and environmental chambers.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Size: 1/16 DIN (48 x 48 mm)
  • Functions: ON/OFF control, PID control
  • Number of control loops: 1
  • Temperature input type: B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
  • Linear analog input type: 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
  • Temperature range: -200-2300 °C
  • Features: SV programmer (8 programs of 32 segments)
  • Number of event inputs: 0
  • Number of alarm outputs: 3
  • Supply voltage AC: 20.4-26.4 V
  • Supply voltage DC: 20.4-26.4 V
  • Control output: Relay
  • Terminal: Screw
  • Voltage type (operating voltage) (EF005294): AC/DC
  • Type of electric connection (EF003961): Screw connection
  • Voltage type (supply voltage) (EF002991): AC/DC

More info

▲

Specifications

Size1/16 DIN (48 x 48 mm)
FunctionsON/OFF control, PID control
Number of control loops1
Temperature input typeB, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
Linear analog input type0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
Temperature range-200-2300 °C
FeaturesSV programmer (8 programs of 32 segments)
Number of event inputs0
Number of alarm outputs3
Supply voltage AC20.4-26.4 V
Supply voltage DC20.4-26.4 V
Control outputRelay
TerminalScrew
