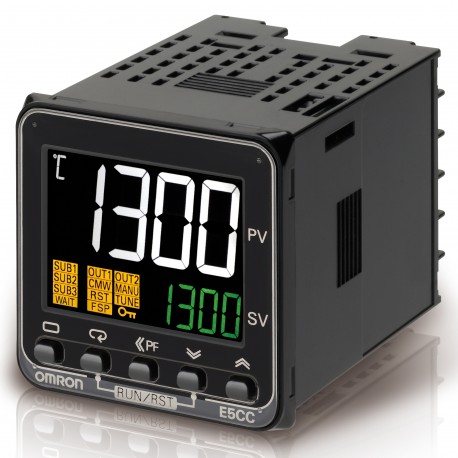

OMRON E5CC-TRX3A5M-000 E5CC-TRX3A5M-000 E5CC5500A E5CCTRX3A5M000 OMRON Ctrl.Temp,Ent.Univ,Salt.relay,3sal.aux,100-240VAC,Screw,48x48 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E5CC-TRX3A5M-000 E5CC5500A E5CCTRX3A5M000 OMRON Ctrl.Temp,Ent.Univ,Salt.relay,3sal.aux,100-240VAC,Screw,48x48

E5CC-TRX3A5M-000

E5CC5500A

E5CCTRX3A5M000

OMRON

1 Pcs.

Ctrl.Temp,Ent.Univ,Salt.relay,3sal.aux,100-240VAC,Screw,48x48 Temp. controller, PRO, 1/16 DIN (48 x 48 mm), Progr., 3 AUX, 1 x Relay OUT, 100 to 240 VAC

Automation > Temperature monitoring relay
E5_C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron device E5CC-TRX3A5M-000 operates as a process temperature controller equipped with integrated programming features for demanding industrial applications. Such controllers regulate heat output in ovens, extruders, and furnaces by executing multi-segment profiles and adjusting control variables in real time. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: 1/16 DIN (48 x 48 mm)
  • Functions: ON/OFF control, PID control
  • Number of control loops: 1
  • Temperature input type: B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
  • Linear analog input type: 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
  • Temperature range: -200-2300 °C
  • Features: SV programmer (8 programs of 32 segments)
  • Number of event inputs: 0
  • Number of alarm outputs: 3
  • Supply voltage AC: 100-240 V
  • Control output: Relay
  • Terminal: Screw
  • Voltage type (operating voltage) (EF005294): AC
  • Type of electric connection (EF003961): Screw connection
  • Voltage type (supply voltage) (EF002991): AC
  • Error registration possible (EF003423): No

More info

▲

Specifications

Size1/16 DIN (48 x 48 mm)
FunctionsON/OFF control, PID control
Number of control loops1
Temperature input typeB, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
Linear analog input type0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
Temperature range-200-2300 °C
FeaturesSV programmer (8 programs of 32 segments)
Number of event inputs0
Number of alarm outputs3
Supply voltage AC100-240 V
Control outputRelay
TerminalScrew
