View larger
Images are for illustrative purposes only. Please refer to data sheet for details

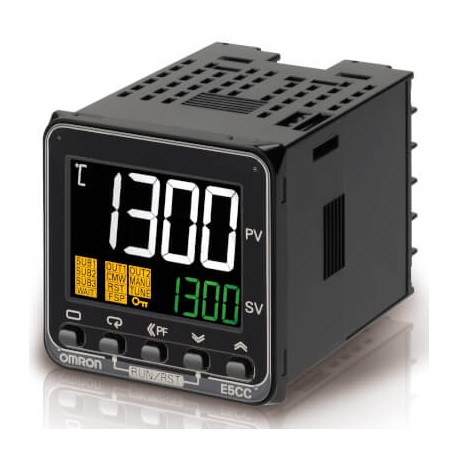

E5CC-TQX3A5M-000 E5CC5510R E5CCTQX3A5M000 OMRON Ctrl.Temp,Ent.Univ,Salt.SSR,3sal.aux,100-240VAC,Screw,48x48
E5CC-TQX3A5M-000
E5CC5510R
E5CCTQX3A5M000
OMRON
1 Pcs.
Ctrl.Temp,Ent.Univ,Salt.SSR,3sal.aux,100-240VAC,Screw,48x48
Temp. controller, PRO, 1/16 DIN (48 x 48 mm), Progr., 3 AUX, 1 x 12 VDC pulse OUT, 100 to 240 VAC
Automation > Temperature monitoring relay
E5_C
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Size1/16 DIN (48 x 48 mm)FunctionsON/OFF control, PID controlNumber of control loops1Temperature input typeB, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, ULinear analog input type0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mATemperature range-200-2300 °CFeaturesSV programmer (8 programs of 32 segments)Number of event inputs0Number of alarm outputs3Supply voltage AC100-240 VControl outputVoltage pulseTerminal typeScrew
| Feature Name | Feature Value |
|---|---|
| Voltage type (operating voltage) (EF005294) | AC |
| Type of electric connection (EF003961) | Screw connection |
| Voltage type (supply voltage) (EF002991) | AC |
| Error registration possible (EF003423) | No |
| External reset possible (EF003426) | No |
| With detachable clamps (EF003340) | No |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 3 |
| Width (EF000008) | 48 mm |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of measuring circuits (EF003425) | 1 |
| Height (EF000040) | 48 mm |
| Depth (EF000049) | 64 mm |
| Supply voltage AC 50 Hz (EF007532) | 100 V |
| Temperature measuring range (EF009788) | -200 °C |
| Supply voltage AC 60 Hz (EF007533) | 100 V |
