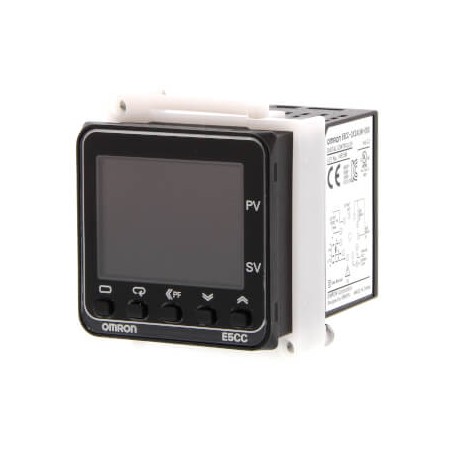

OMRON E5CC-RW2DUM-000 E5CC-RW2DUM-000 E5CC1169A 386700 OMRON Ent. Universal 2 Alarms Salt Relay 24Vdc/Vac 48x48 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E5CC-RW2DUM-000 E5CC1169A 386700 OMRON Ent. Universal 2 Alarms Salt Relay 24Vdc/Vac 48x48

E5CC-RW2DUM-000

E5CC1169A

E5CCRW2DUM000

OMRON

1 Pcs.

Ent. Universal 2 Alarms Salt Relay 24vdc/Vac 48x48 Temp. controller, PRO, 1/16 DIN (48 x 48 mm), Plugin-type, 2 AUX, SPDT Rel., 24V AC/DC

Automation > Temperature monitoring relay
E5_C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron E5CC-RW2DUM-000 acts as a versatile temperature controller designed to regulate thermal loops in industrial automation equipment. Such instruments process input data from thermocouples or resistance thermometers to deliver accurate control signals to heating elements.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Size: 1/16 DIN (48 x 48 mm)
  • Functions: ON/OFF control, PID control
  • Number of control loops: 1
  • Temperature input type: B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
  • Linear analog input type: 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
  • Temperature range: -200-2300 °C
  • Number of event inputs: 0
  • Number of alarm outputs: 2
  • Supply voltage AC: 20.4-26.4 V
  • Supply voltage DC: 20.4-26.4 V
  • Control output: Relay
  • Terminal: Plug-in
  • Voltage type (operating voltage) (EF005294): AC/DC
  • Type of electric connection (EF003961): Screw connection
  • Voltage type (supply voltage) (EF002991): AC/DC
  • Error registration possible (EF003423): No

More info

▲

Specifications

Size1/16 DIN (48 x 48 mm)
FunctionsON/OFF control, PID control
Number of control loops1
Temperature input typeB, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
Linear analog input type0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
Temperature range-200-2300 °C
Number of event inputs0
Number of alarm outputs2
Supply voltage AC20.4-26.4 V
Supply voltage DC20.4-26.4 V
Control outputRelay
TerminalPlug-in
