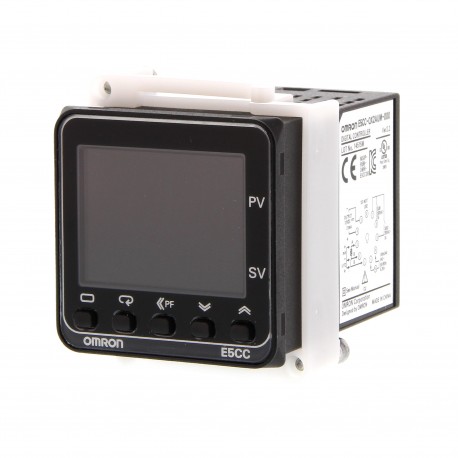

OMRON E5CC-RW1AUM-000 E5CC-RW1AUM-000 E5CC1166G E5CCRW1AUM000 OMRON Temperature Control 48x48 mm,plug-in, PV/SV1 loop, SPDT relay View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E5CC-RW1AUM-000 E5CC1166G E5CCRW1AUM000 OMRON Temperature Control 48x48 mm,plug-in, PV/SV1 loop, SPDT relay

E5CC-RW1AUM-000

E5CC1166G

E5CCRW1AUM000

OMRON

1 Pcs.

Temperature Control 48x48 mm,plug-in, PV/SV1 loop, SPDT relay Temp. controller, PRO,1/16 DIN (48x48mm),Plugin-type,1 x Rel. OUT,SPDT Rel.,100-240 VAC

Automation > Temperature monitoring relay
E5_C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron E5CC-RW1AUM-000 is a plug-in temperature controller utilized in control systems to maintain targeted thermal set points. Industrial process controllers receive sensor feedback and modulate control loops to regulate heaters, chillers, and furnaces. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (operating voltage): AC
  • Type of electric connection: Plug-in connection
  • Voltage type (supply voltage): AC
  • Error registration possible: No
  • External reset possible: No
  • With detachable clamps: No
  • Number of contacts as change-over contact: 0
  • Number of contacts as normally open contact: 1
  • Width: 48 mm
  • Number of contacts as normally closed contact: 0
  • Number of measuring circuits: 1
  • Height: 48 mm
  • Depth: 58.6 mm
  • Supply voltage AC 50 Hz: 100 V
  • Temperature measuring range: -200 °C
  • Supply voltage AC 60 Hz: 100 V

More info

▲
  • Fast and precise regulation: 50 ms sampling loop period time
  • Easy to set up, and operate intuitively via CX-Thermo without power supply
  • Best contrast display using white LCD technology which is visible from a far distance and from any angle
  • Useful alarm and diagnosis functions for secure operation
  • Practical timer and logic operation functions eliminating the need of a PLC
  • Additional models with different features are available. Please check related product catalogue.
