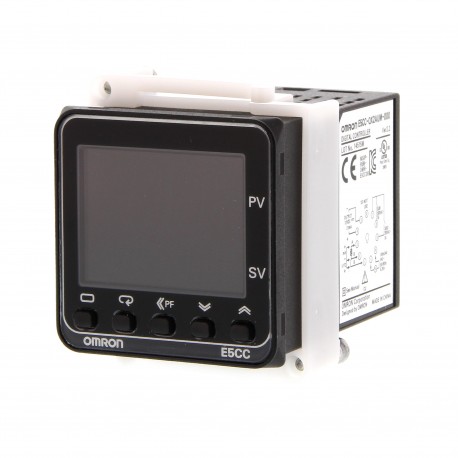

E5CC-QX1AUM-000 E5CC1172A E5CCQX1AUM000 OMRON Temperature Control 48x48 mm,plug-in, PV/SV1 loop, 1 x 12 VDC ..
E5CC-QX1AUM-000
E5CC1172A
E5CCQX1AUM000
OMRON
1 Pcs.
Automation > Temperature monitoring relay
E5_C
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
E5CC-QX1AUM-000 Omron temperature controller is built to deliver compact, accurate thermal regulation in commercial and industrial heating applications. Panel operators rely on these units to monitor ambient or internal temperatures and dynamically adjust control elements for optimal energy use. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Voltage type (operating voltage) (EF005294): AC
- Type of electric connection (EF003961): Plug-in connection
- Voltage type (supply voltage) (EF002991): AC
- Error registration possible (EF003423): No
- External reset possible (EF003426): No
- With detachable clamps (EF003340): No
- Number of contacts as change-over contact (EF008257): 0
- Number of contacts as normally open contact (EF008256): 1
- Width (EF000008): 48 mm
- Number of contacts as normally closed contact (EF008255): 0
- Number of measuring circuits (EF003425): 1
- Height (EF000040): 48 mm
- Depth (EF000049): 58.6 mm
- Supply voltage AC 50 Hz (EF007532): 100 V
- Temperature measuring range (EF009788): -200 °C
- Supply voltage AC 60 Hz (EF007533): 100 V
More info
▲- Fast and precise regulation: 50 ms sampling loop period time
- Easy to set up, and operate intuitively via CX-Thermo without power supply
- Best contrast display using white LCD technology which is visible from a far distance and from any angle
- Useful alarm and diagnosis functions for secure operation
- Practical timer and logic operation functions eliminating the need of a PLC
- Additional models with different features are available. Please check related product catalogue.
