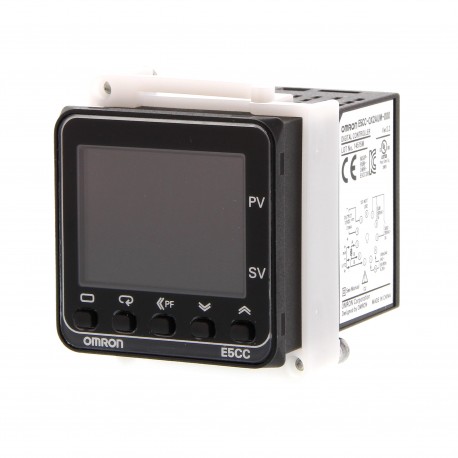

OMRON E5CC-QX0DUM-000 E5CC-QX0DUM-000 E5CC1171C E5CCQX0DUM000 OMRON Temperature Control 48x48 mm,plug-in, PV/SV1 loop, 1 x 12 VDC .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E5CC-QX0DUM-000 E5CC1171C E5CCQX0DUM000 OMRON Temperature Control 48x48 mm,plug-in, PV/SV1 loop, 1 x 12 VDC ..

E5CC-QX0DUM-000

E5CC1171C

E5CCQX0DUM000

OMRON

1 Pcs.

Temperature Control 48x48 mm,plug-in, PV/SV1 loop, 1 x 12 VDC pulse Temp. controller, PRO,1/16 DIN (48x48mm),Plugin-type,No AUX Rel.,1 x 12 VDC pulse OUT,24V AC/DC

Automation > Temperature monitoring relay
E5_C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A temperature control unit is typically installed within industrial control panels to govern heating elements, ovens, and chillers by comparing feedback loops against target setpoints. This Omron E5CC-QX0DUM-000 device utilizes a plug-in connection format to facilitate fast replacement and maintenance inside complex automation panels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (operating voltage) (EF005294): AC/DC
  • Type of electric connection (EF003961): Plug-in connection
  • Voltage type (supply voltage) (EF002991): AC/DC
  • Error registration possible (EF003423): No
  • External reset possible (EF003426): No
  • With detachable clamps (EF003340): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 0
  • Width (EF000008): 48 mm
  • Number of contacts as normally closed contact (EF008255): 0
  • Number of measuring circuits (EF003425): 1
  • Height (EF000040): 48 mm
  • Depth (EF000049): 58.6 mm
  • Supply voltage AC 50 Hz (EF007532): 24 V
  • Temperature measuring range (EF009788): -200 °C
  • Supply voltage AC 60 Hz (EF007533): 24 V

More info

▲
  • Fast and precise regulation: 50 ms sampling loop period time
  • Easy to set up, and operate intuitively via CX-Thermo without power supply
  • Best contrast display using white LCD technology which is visible from a far distance and from any angle
  • Useful alarm and diagnosis functions for secure operation
  • Practical timer and logic operation functions eliminating the need of a PLC
  • Additional models with different features are available. Please check related product catalogue.
