View larger
Images are for illustrative purposes only. Please refer to data sheet for details

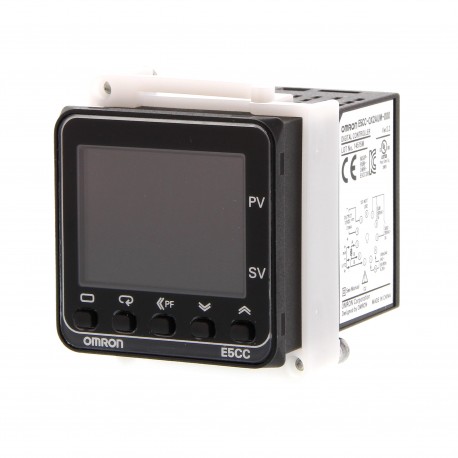

E5CC-CX1AUM-000 E5CC1178M E5CCCX1AUM000 OMRON Temperature Control 48x48 mm,plug-in, PV/SV1 tie, 1 x 0/4-20mA..
E5CC-CX1AUM-000
E5CC1178M
E5CCCX1AUM000
OMRON
1 Pcs.
Temperature Control 48x48 mm,plug-in, PV/SV1 tie, 1 x 0/4-20mA current
Temperature control, 48x48 mm,pluggable, PV/SV1 loop, 1 x 0/4-20mA current
Temp. controller, PRO,1/16 DIN (48x48mm),Plugin-type,1 x Rel. OUT,1x0/4-20mA curr. OUT,100-240 VAC
Automation > Temperature monitoring relay
E5_C
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Fast and precise regulation: 50 ms sampling loop period time
- Easy to set up, and operate intuitively via CX-Thermo without power supply
- Best contrast display using white LCD technology which is visible from a far distance and from any angle
- Useful alarm and diagnosis functions for secure operation
- Practical timer and logic operation functions eliminating the need of a PLC
- Additional models with different features are available. Please check related product catalogue.
| Feature Name | Feature Value |
|---|---|
| Voltage type (operating voltage) (EF005294) | AC |
| Type of electric connection (EF003961) | Plug-in connection |
| Voltage type (supply voltage) (EF002991) | AC |
| Error registration possible (EF003423) | No |
| External reset possible (EF003426) | No |
| With detachable clamps (EF003340) | No |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 1 |
| Width (EF000008) | 48 mm |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of measuring circuits (EF003425) | 1 |
| Height (EF000040) | 48 mm |
| Depth (EF000049) | 58.6 mm |
| Supply voltage AC 50 Hz (EF007532) | 100 V |
| Temperature measuring range (EF009788) | -200 °C |
| Supply voltage AC 60 Hz (EF007533) | 100 V |
